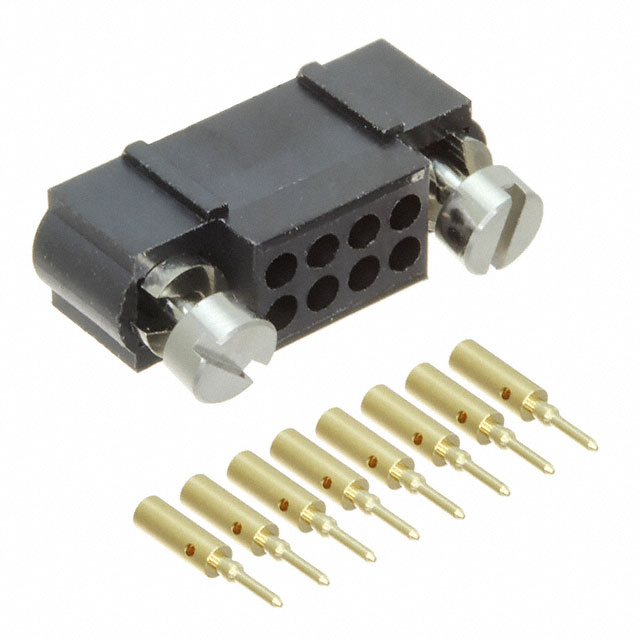

M80-5620805

Active

Harwin Inc.

CONNECTOR, PLUG, 8POS, 2ROW, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR, PLUG, 8POS, 2ROW, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Color	Connector Type	Number of Positions	Cable Termination	Mounting Type	Row Spacing	Row Spacing	Contact Type	Features	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Wire Gauge
Harwin Inc. M80-5625005	2	Black	Header	50	Crimp	Free Hanging (In-Line)	2 mm	0.079 in	Male Pin	Jackscrews	Discrete	10 Áin	0.25 Ám	Gold	0.079 in	2 mm	22 AWG
Harwin Inc. M80-5624205	2	Black	Header	42	Crimp	Free Hanging (In-Line)	2 mm	0.079 in	Male Pin	Jackscrews	Discrete	10 Áin	0.25 Ám	Gold	0.079 in	2 mm	22 AWG
Harwin Inc. M80-5620605	2	Black	Header	6	Crimp	Free Hanging (In-Line)	2 mm	0.079 in	Male Pin	Jackscrews	Discrete	10 Áin	0.25 Ám	Gold	0.079 in	2 mm	22 AWG
Harwin Inc. M80-5621005	2	Black	Header	10	Crimp	Free Hanging (In-Line)	2 mm	0.079 in	Male Pin	Jackscrews	Discrete	10 Áin	0.25 Ám	Gold	0.079 in	2 mm	22 AWG
Harwin Inc. M80-5620805	2	Black	Header	8	Crimp	Free Hanging (In-Line)	2 mm	0.079 in	Male Pin	Jackscrews	Discrete	10 Áin	0.25 Ám	Gold	0.079 in	2 mm	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Rectangular Header Connector Crimp Gold 22 AWG
