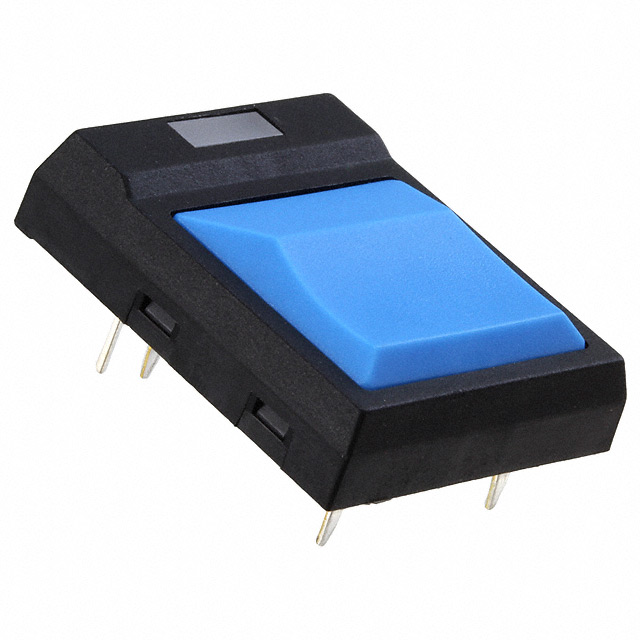

JF15RP3GE

Active

NKK Switches

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Search across all available documentation for this part.

Active

NKK Switches

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Technical Specifications

Parameters and characteristics for this part

Specification	JF15RP3GE

Actuator Height off PCB, Vertical	6.78 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	1.9 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	22.8 mm
Outline [y]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.8 mm
Termination Style	PC Pin

Part	Actuator Height off PCB, Vertical	Mounting Type	Circuit	Operating Force	Features	Illumination Type, Color	Actuator Type	Illumination Voltage (Nominal)	Switch Travel	Contact Rating @ Voltage	Illumination	Termination Style	Actuator Orientation	Actuator Material	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Outline [y]	Outline [x]
NKK Switches JF15RP3GE	6.78 mm	Through Hole	SPST-NO	200 gf	Process Sealed	LED Yellow	Square Button	1.9 VDC	0.8 mm	0.05 A 24 VDC	Illuminated	PC Pin	Top Actuated	Nylon Polyamide (PA)	Off-Mom	70 °C	-25 °C	500000 Cycles	17.7 mm	22.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
