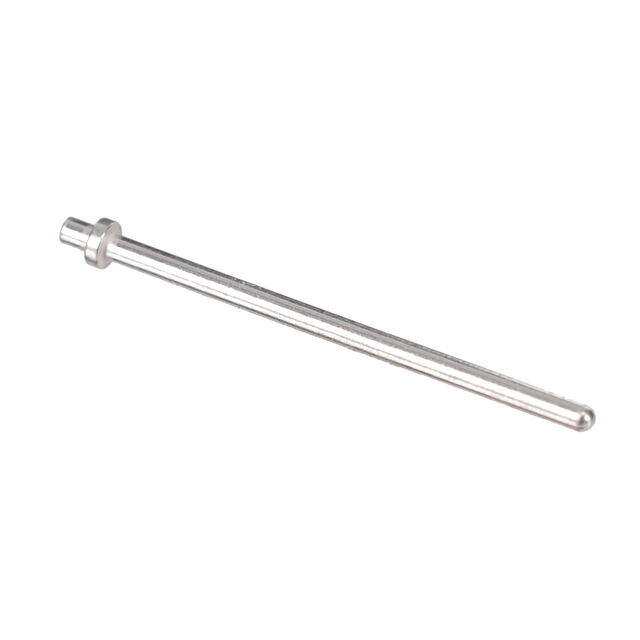

3140-1-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
3140-1-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3140-1-00-80-00-00-08-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.78 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 1.3 mm |
| Length - Above Flange [custom] | 0.051 " |
| Length - Below Flange [x] | 0.78 in |
| Length - Below Flange [x] | 19.81 mm |
| Length - Overall | 0.851 in |
| Length - Overall | 21.62 mm |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.99 mm |
| Pin Size - Above Flange [diameter] | 0.039 in |
| Pin Size - Below Flange [diameter] | 1.02 mm |
| Pin Size - Below Flange [diameter] | 0.04 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.92 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.51 | |||
| 3000 | $ 0.46 | |||
Description
General part information
3140-1 Series
PC Pin Terminal Connector Through Hole Tin 0.039" (0.99mm) Dia
Documents
Technical documentation and resources
No documents available
