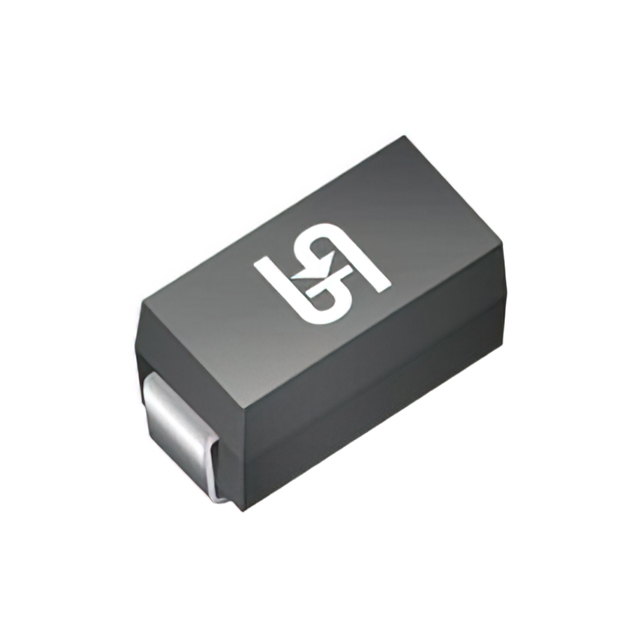

SMBJ75
ActiveTaiwan Semiconductor Corporation
600W, 92.7V, 10%, UNIDIRECTIONAL
Deep-Dive with AI
Search across all available documentation for this part.
SMBJ75
ActiveTaiwan Semiconductor Corporation
600W, 92.7V, 10%, UNIDIRECTIONAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMBJ75 |
|---|---|
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMB, DO-214AA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 83.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 134 V |
| Voltage - Reverse Standoff (Typ) | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.11 | |
| 9000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.09 | |||
Description
General part information
SMBJ75 Series
134V Clamp 4.7A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
