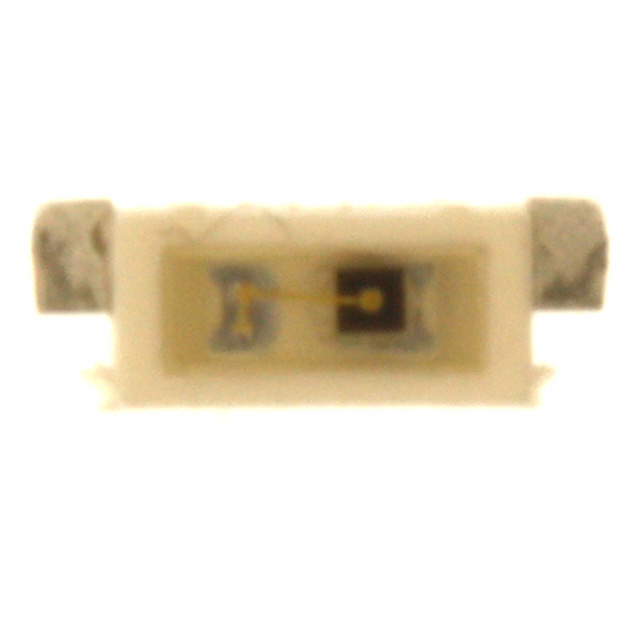

SFH 3204-Z
Obsoleteams-OSRAM USA INC.
SENSOR PHOTO 920NM SIDE VIEW SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 3204-Z
Obsoleteams-OSRAM USA INC.
SENSOR PHOTO 920NM SIDE VIEW SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 3204-Z |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 15 mA |
| Current - Dark (Id) (Max) [Max] | 50 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Side View |
| Package / Case | 2-SMD, Flat Leads |
| Viewing Angle | 120 ° |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Wavelength | 920 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.07 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.46 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3000 | $ 0.34 | ||
| 6000 | $ 0.33 | |||
| 15000 | $ 0.32 | |||
| 30000 | $ 0.31 | |||
Description
General part information
SFH 3204 Series
Phototransistors 920nm Side View 2-SMD, Flat Leads
