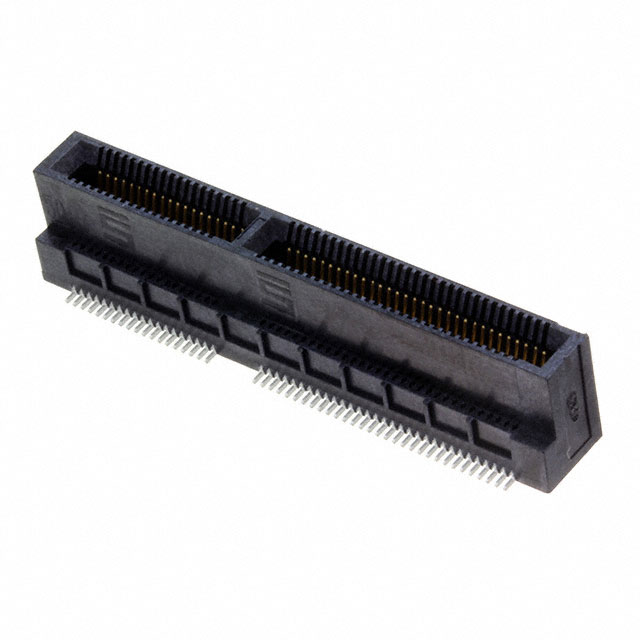

MEC6-150-02-L-DV-A

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.635 MM MINI EDGE CARD CONNECTOR, VERTICAL

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.635 mm Mini Edge Card Connector, Vertical MEC6 Series Other Related Documents 03 +3

MEC6-150-02-L-DV-A

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.635 MM MINI EDGE CARD CONNECTOR, VERTICAL

Deep-Dive with AI

Documents0.635 mm Mini Edge Card Connector, Vertical MEC6 Series Other Related Documents 03 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC6-150-02-L-DV-A

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	100
Number of Positions/Bay/Row [custom]	50
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Read Out	Dual
Termination	Solder

MEC6-150 Series

Standard Card Edge Connectors 0.635 mm Mini Edge Card Connector, Vertical

Part	Gender	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Read Out	Number of Rows	Pitch [x]	Pitch [x]	Contact Material	Color	Card Type	Material - Insulation	Number of Positions	Number of Positions/Bay/Row [custom]	Contact Finish	Features
Samtec Inc. MEC6-150-02-L-D-RA1	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount Right Angle	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	100	50	Gold	Board Guide
Samtec Inc. MEC6-150-02-L-DV-LC-K	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	100	50	Gold	Board Lock Pick and Place
Samtec Inc. MEC6-150-02-L-DV-A	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	100	50	Gold	Board Guide
Samtec Inc. MEC6-140-02-L-DV-K	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	80	40	Gold	Pick and Place
Samtec Inc. MEC6-150-02-L-DV-K-TR	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	100	50	Gold	Pick and Place
Samtec Inc. MEC6-150-02-L-D-RA1-TR	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount Right Angle	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	100	50	Gold	Board Guide
Samtec Inc. MEC6-150-02-L-DV-A-TR	Female	0.062 in	1.57 mm	10 Áin	0.25 Ám	-55 °C	125 °C	Surface Mount	Solder	Dual	2	0.64 mm	0.025 in	Phosphor Bronze	Black	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	100	50	Gold	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	52	$ 7.20
		104	$ 6.74
Sager	N/A	52	$ 7.20
		104	$ 5.88
		468	$ 5.44
		988	$ 4.55
		2704	$ 3.67
		7384	$ 3.39
		15912	$ 3.14

Description

General part information

MEC6-150 Series

Standard Card Edge Connectors 0.635 mm Mini Edge Card Connector, Vertical

Documents

Technical documentation and resources

0.635 mm Mini Edge Card Connector, Vertical

MEC6 Series Other Related Documents 03

MEC6 Datasheet

Datasheet

Document
