HEN.0F.305.XLNPS

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HEN.0F.305.XLNPS

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 141.47
		200	$ 56.45
		500	$ 54.56
		1000	$ 53.63

Description

General part information

HEN.0F Series

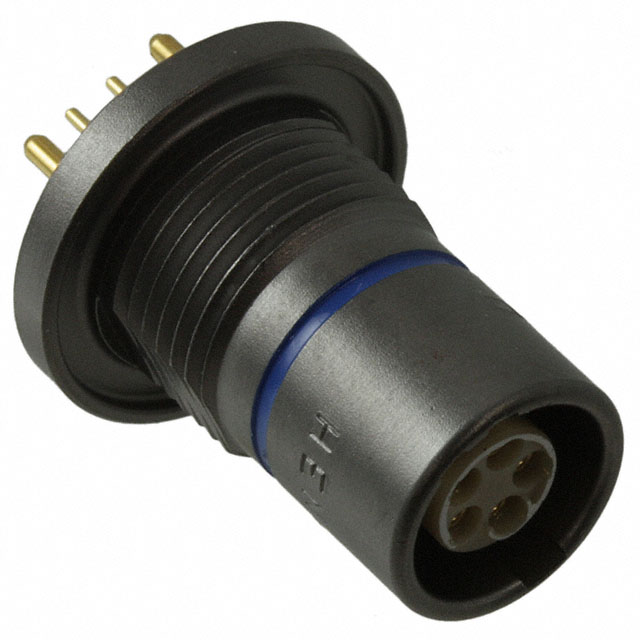

5 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEN.0F.305.XLNPS	HEN.0F Series

Applications	Aerospace	Aerospace
Color	Gray	Gray, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	6.5 A	6.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	-	2 - 4
Operating Temperature [Max]	100 °C	100 - 150 °C
Operating Temperature [Min]	-15 °C	-50 - -15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	305	302 - 305
Shielding	Shielded	Shielded
Termination	Solder	Solder

HEN.0F Series

CONN RCPT FMALE 2POS GOLD SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Applications	Number of Positions	Termination	Color	Insert Material	Primary Material	Current Rating (Amps)	Features	Ingress Protection	Mounting Feature	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Contact Material	Shell Finish	Connector Type	Orientation	Shell Material	Mounting Type	Shielding
LEMO HEN.0F.302.XLNP	100 °C	-15 °C	UL94 V-0	Aerospace	2	Solder	Gray	Polyetheretherketone (PEEK)	Metal	10 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	302	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.305.XLLP	100 °C	-15 °C	UL94 V-0	Aerospace			Gray	Polyetheretherketone (PEEK)	Metal	6.5 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	305	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy		Shielded
LEMO HEN.0F.303.XLNP	100 °C	-15 °C	UL94 V-0	Aerospace		Solder	Gray	Polyetheretherketone (PEEK)	Metal	8 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	303	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.305.CLNPY	150 °C	-50 °C	UL94 V-0	Aerospace		Solder	Silver	Polyetheretherketone (PEEK)	Metal	6.5 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	305	Bronze	Chrome	Receptacle, Female Sockets	N	Brass	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.304.XLNP	100 °C	-15 °C	UL94 V-0	Aerospace	4	Solder	Gray	Polyetheretherketone (PEEK)	Metal	7 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	304	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.305.XLNPS	100 °C	-15 °C	UL94 V-0	Aerospace		Solder	Gray	Polyetheretherketone (PEEK)	Metal	6.5 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	305	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.304.XLVP	100 °C	-15 °C	UL94 V-0	Aerospace	4	Solder	Gray	Polyetheretherketone (PEEK)	Metal	7 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	304	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy	Panel Mount, Right Angle, Through Hole	Shielded
LEMO HEN.0F.305.XLNP	100 °C	-15 °C	UL94 V-0	Aerospace		Solder	Gray	Polyetheretherketone (PEEK)	Metal	6.5 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	305	Bronze	Nickel	Receptacle, Female Sockets	N	Aluminum Alloy	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.305.CLNP	150 °C	-50 °C	UL94 V-0	Aerospace		Solder	Silver	Polyetheretherketone (PEEK)	Metal	6.5 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	305	Bronze	Chrome	Receptacle, Female Sockets	N	Brass	Panel Mount, Through Hole	Shielded
LEMO HEN.0F.304.CLNP	150 °C	-50 °C	UL94 V-0	Aerospace	4	Solder	Silver	Polyetheretherketone (PEEK)	Metal	7 A	Potted	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Push-Pull	59 Áin	1.5 Ám	304	Bronze	Chrome	Receptacle, Female Sockets	N	Brass	Panel Mount, Through Hole	Shielded
