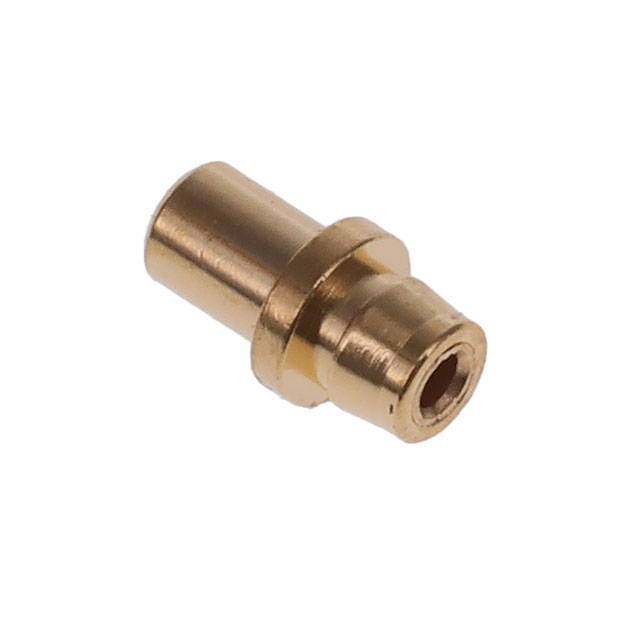

6453-0-15-15-30-27-10-0

Active

Mill-Max Manufacturing Corp.

PRESS-FIT RECEPTACLE FOR NON PLA

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

PRESS-FIT RECEPTACLE FOR NON PLA

Technical Specifications

Parameters and characteristics for this part

Specification	6453-0-15-15-30-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.31 mm
Flange Diameter [diameter]	0.091 in
Length - Overall [x]	4.12 mm
Length - Overall [x]	0.162 in
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	3.25 mm
Socket Depth	0.128 in
Tail Type	No Tail
Termination	Press-Fit

Part	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 6453-0-15-15-30-27-10-0	0.76 Ám	30 Áin	2.31 mm	0.091 in	Gold	-55 °C	125 °C	No Tail	3.25 mm	0.128 in	4.12 mm	0.162 in	Press-Fit	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	1.7 mm	0.067 "
