KC14A13.002NLS

Obsolete

E-Switch

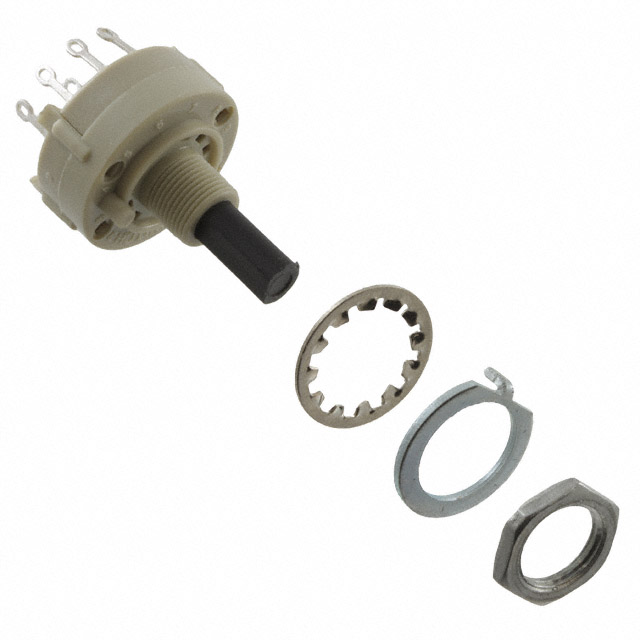

SWITCH ROTARY 4POS 350MA 125V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH ROTARY 4POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC14A13.002NLS

Actuator Length [x]	13 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP4T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel [z]	18.5 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	4
Panel Cutout Dimensions [diameter]	10.2 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Index Stops	Actuator Type [diameter]	Actuator Type	Mounting Type	Contact Finish	Circuit per Deck	Number of Positions	Number of Decks [custom]	Contact Timing	Angle of Throw	Number of Poles per Deck	Actuator Length [x]	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Depth Behind Panel	Panel Cutout Dimensions [diameter]	Contact Material	Depth Behind Panel [z]
E-Switch KC14A13.001NPS	Fixed	6.35 mm	Flatted	Panel Mount Through Hole	Silver	SP4T	4	1	Non-Shorting	30 °	1	13 mm	PC Pin	350 mA	125 V	14.2 mm	9.8 mm	Copper Alloy
E-Switch KC14A13.002NLS	Fixed	6.35 mm	Flatted		Silver	SP4T	4	1	Non-Shorting	30 °	1	13 mm	Solder Lug	350 mA	125 V		10.2 mm	Copper Alloy	18.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 4 Position SP4T 350mA (AC) 125 VAC Panel Mount
