EN3P4FX
ActiveSwitchcraft Inc.

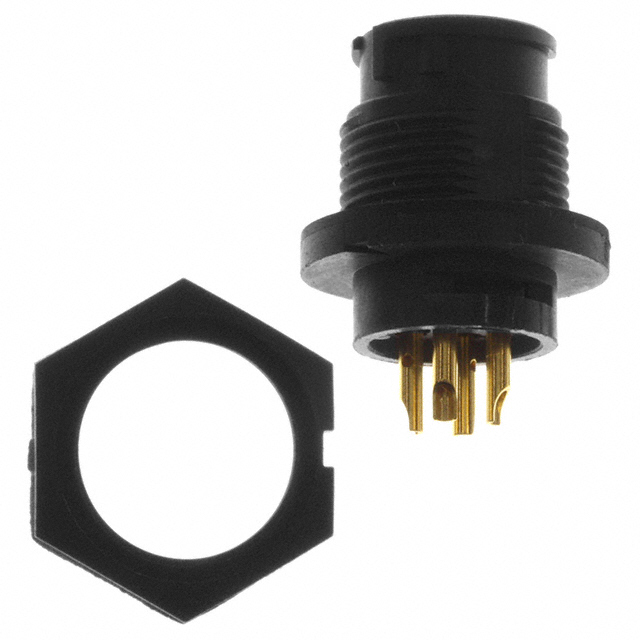

CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P4FX
ActiveSwitchcraft Inc.
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P4FX | EN3P4F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 5 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Solder, Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P4F Series
CONN RCPT FMALE 4POS GOLD SOLDER
| Part | Connector Type | Primary Material | Mounting Type | Current Rating (Amps) | Material Flammability Rating | Fastening Type | Insert Material | Termination | Shielding | Ingress Protection | Applications | Contact Material | Mounting Feature | Orientation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P4FPX | Receptacle, Female Sockets | Plastic | Panel Mount, Through Hole | 7.5 A | UL94 V-0 | Bayonet Lock | Elastomer | Solder | Unshielded | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | Copper Alloy | Bulkhead - Front Side Nut | Keyed | 4 | 65 °C | -40 °C | Gold | Black | 250 VAC |
Switchcraft Inc. EN3P4FCKX | Receptacle, Female Sockets | Plastic | 7.5 A | UL94 V-0 | Bayonet Lock | Elastomer | Crimp | Unshielded | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | Copper Alloy | Bulkhead - Front Side Nut | Keyed | 4 | 65 °C | -40 °C | Gold | Black | 250 VAC | |
Switchcraft Inc. EN3P4FX | Receptacle, Female Sockets | Plastic | 7.5 A | UL94 V-0 | Bayonet Lock | Elastomer | Unshielded | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | Copper Alloy | Bulkhead - Front Side Nut | Keyed | 4 | 65 °C | -40 °C | Gold | Black | 250 VAC | ||
Switchcraft Inc. EN3P4FCX | Receptacle, Female Sockets | Plastic | 7.5 A | UL94 V-0 | Bayonet Lock | Elastomer | Crimp | Unshielded | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | Copper Alloy | Bulkhead - Front Side Nut | Keyed | 4 | 65 °C | -40 °C | Gold | Black | 250 VAC | |
Switchcraft Inc. EN3P4FKX | Receptacle, Female Sockets | Plastic | 7.5 A | UL94 V-0 | Bayonet Lock | Elastomer | Unshielded | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | Copper Alloy | Bulkhead - Front Side Nut | Keyed | 4 | 65 °C | -40 °C | Gold | Black | 250 VAC | ||
Switchcraft Inc. EN3P4FRAPCX | Receptacle, Female Sockets | Plastic | Panel Mount, Right Angle, Through Hole | 5 A | UL94 V-0 | Bayonet Lock | Elastomer | Solder | Unshielded | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | Copper Alloy | Bulkhead - Front Side Nut | Keyed | 4 | 65 °C | -40 °C | Gold | Black | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.97 | |
| 10 | $ 12.28 | |||
| 25 | $ 11.11 | |||
| 50 | $ 10.31 | |||
| 100 | $ 9.59 | |||
| 300 | $ 8.59 | |||
| 500 | $ 8.17 | |||
| 1000 | $ 7.65 | |||
Description
General part information
EN3P4F Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
