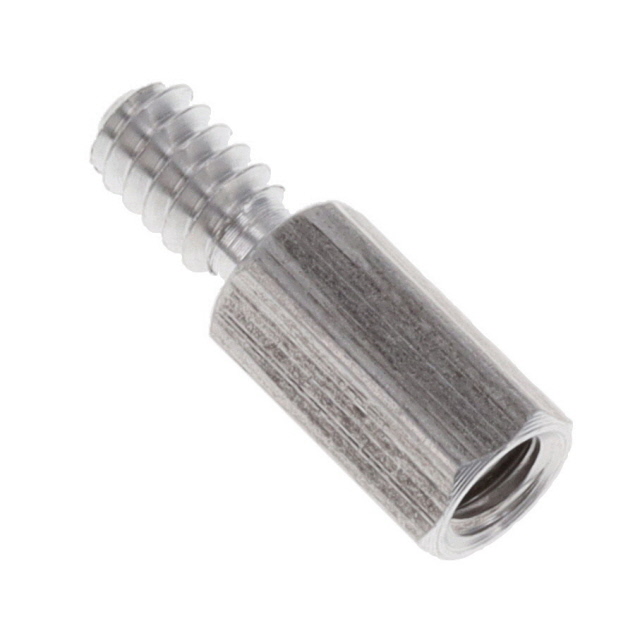

4502T-632-AL

Active

RAF Electronic Hardware

3/16_HEX_MALE_FEMALE_STANDOFFS

Search across all available documentation for this part.

Active

RAF Electronic Hardware

3/16_HEX_MALE_FEMALE_STANDOFFS

Technical Specifications

Parameters and characteristics for this part

Part	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height	Between Board Height	Threaded/Unthreaded	Plating	Gender	Type	Material	Color	Diameter - Outside [custom]	Length - Overall	Length - Overall	Length - Overall
RAF Electronic Hardware 4502T-440-SS-20	#4-40	0.531 "	13.5 mm	4.76 mm	0.188 "	0.344 "	8.73 mm	Threaded	Passivated	Female Male	Hex Standoff	Stainless Steel
RAF Electronic Hardware 4502T-440-AL-7	#4-40	0.531 "	13.5 mm	4.76 mm	0.188 "	0.344 "	8.73 mm	Threaded	Iridite	Female Male	Hex Standoff	Aluminum	Clear
RAF Electronic Hardware 4502T-632-AL	#6-32			0.188 in 4.78 mm		0.344 "	8.73 mm	Threaded		Female Male	Hex Standoff	Aluminum		0.1875 in	15.08 mm	0.594 in
RAF Electronic Hardware 4502T-440-AL	#4-40			0.188 in 4.78 mm		0.344 "	8.73 mm	Threaded		Female Male	Hex Standoff	Aluminum		0.1875 in	0.531 in		13.49 mm
RAF Electronic Hardware 4502T-440-SS	#4-40			0.188 in 4.78 mm		0.344 "	8.73 mm	Threaded		Female Male	Hex Standoff	Stainless Steel		0.1875 in	0.531 in		13.49 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded #6-32 Aluminum 0.344" (8.73mm)
