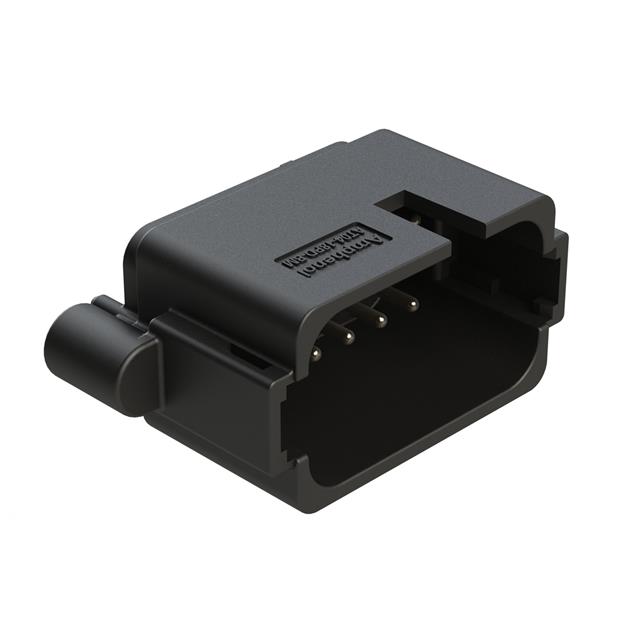

AT04-18PD-BM13BK
ActiveAmphenol Sine Systems Corp
18 POSITION, PCB RECEPTACLE, FLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT04-18PD-BM13BK
ActiveAmphenol Sine Systems Corp
18 POSITION, PCB RECEPTACLE, FLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-18PD-BM13BK |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Nickel |
| Contact Length - Post | 0.128 " |
| Contact Length - Post | 3.25 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Holder |
| Features | Board Guide, Mounting Flange |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Insulation Height | 1.01 in |
| Insulation Height | 25.65 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.184 in |
| Pitch - Mating | 4.68 mm |
| Row Spacing - Mating | 4.83 mm |
| Row Spacing - Mating | 0.19 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
AT04-18PD Series
| Part | Contact Shape | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Termination | Insulation Height | Insulation Height | Ingress Protection | Mounting Type | Connector Type | Insulation Color | Number of Rows | Insulation Material | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Pitch - Mating | Pitch - Mating | Features | Number of Positions Loaded | Style | Fastening Type | Contact Type | Shrouding | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Circular | 18 | 4.83 mm | 0.19 in | 13 A | 0.128 " | 3.25 mm | Solder | 1.01 in | 25.65 mm | IP67 - Dust Tight Waterproof | Through Hole | Receptacle | Brown | 3 | Thermoplastic | Copper Alloy | 250 VDC | -55 °C | 125 °C | Automotive General Purpose Industrial | 0.184 in | 4.68 mm | Board Guide Mounting Flange Potting Wall | All | Board to Cable/Wire | Latch Holder | Male Pin | Shrouded - 4 Wall | Nickel |
Amphenol Sine Systems Corp | Circular | 18 | 4.83 mm | 0.19 in | 13 A | 0.128 " | 3.25 mm | Solder | 1.01 in | 25.65 mm | IP67 - Dust Tight Waterproof | Through Hole | Receptacle | Black | 3 | Thermoplastic | Copper Alloy | 250 VDC | -55 °C | 125 °C | Automotive General Purpose Industrial | 0.184 in | 4.68 mm | Board Guide Mounting Flange Potting Wall | All | Board to Cable/Wire | Latch Holder | Male Pin | Shrouded - 4 Wall | Nickel |
Amphenol Sine Systems Corp | Circular | 18 | 4.83 mm | 0.19 in | 13 A | 0.128 " | 3.25 mm | Solder | 1.01 in | 25.65 mm | IP67 - Dust Tight Waterproof | Through Hole | Receptacle | Black | 3 | Thermoplastic | Copper Alloy | 250 VDC | -55 °C | 125 °C | Automotive General Purpose Industrial | 0.184 in | 4.68 mm | Board Guide Mounting Flange Potting Wall | All | Board to Cable/Wire | Latch Holder | Male Pin | Shrouded - 4 Wall | Gold |
Amphenol Sine Systems Corp | Circular | 18 | 4.83 mm | 0.19 in | 13 A | 0.128 " | 3.25 mm | Solder | 1.01 in | 25.65 mm | IP67 - Dust Tight Waterproof | Through Hole | Receptacle | Black | 3 | Thermoplastic | Copper Alloy | 250 VDC | -55 °C | 125 °C | Automotive General Purpose Industrial | 0.184 in | 4.68 mm | Board Guide Mounting Flange | All | Board to Cable/Wire | Latch Holder | Male Pin | Shrouded - 4 Wall | Gold |
Amphenol Sine Systems Corp | Circular | 18 | 4.83 mm | 0.19 in | 13 A | 0.128 " | 3.25 mm | Solder | 1.01 in | 25.65 mm | IP67 - Dust Tight Waterproof | Through Hole | Receptacle | Black | 3 | Thermoplastic | Copper Alloy | 250 VDC | -55 °C | 125 °C | Automotive General Purpose Industrial | 0.184 in | 4.68 mm | Board Guide Mounting Flange | All | Board to Cable/Wire | Latch Holder | Male Pin | Shrouded - 4 Wall | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 7.53 | |
Description
General part information
AT04-18PD Series
Connector Header Through Hole 18 position 0.184" (4.68mm)
