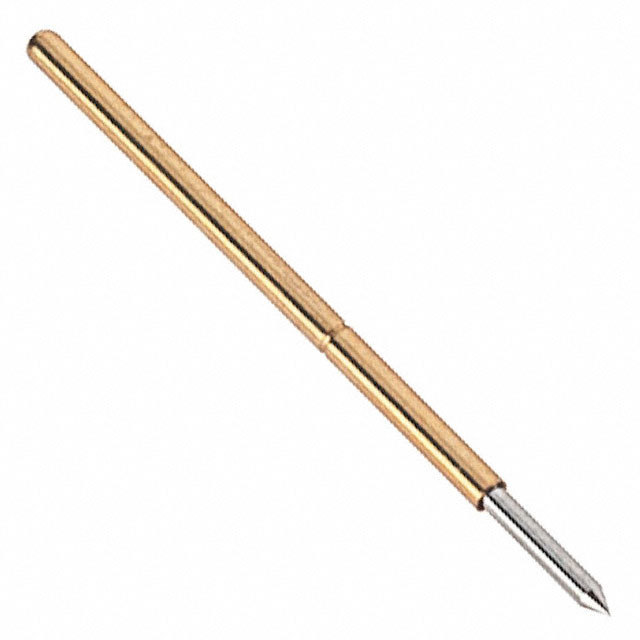

P13-0123 - P13-0123

P13-0123

Active
Harwin Inc.

CONTACT, CONNECTOR, 1.27 MM, SPRING LOADED PROBE, 1.27 MM, 45° SPEAR, 3 A, 16.35 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetP1113CV3+3
P13-0123 - P13-0123

P13-0123

Active
Harwin Inc.

CONTACT, CONNECTOR, 1.27 MM, SPRING LOADED PROBE, 1.27 MM, 45° SPEAR, 3 A, 16.35 MM

Deep-Dive with AI

DocumentsDatasheetP1113CV3+3

Technical Specifications

Parameters and characteristics for this part

SpecificationP13-0123
Connection TypeSleeve S13-503
Current Rating (Amps)3 A
Length - Tip3.35 mm
Length - Tip0.132 in
Material - BodyPhosphor Bronze
Material - TipBeryllium Copper, Gold Plated
Operating Temperature [Max]85 °C
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Quantity1 Box
Tip TypeSpear Head

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.32
10$ 3.92
25$ 3.71
50$ 3.62
100$ 3.45
250$ 3.02
500$ 2.93
1000$ 2.50
2500$ 2.33
NewarkEach 1$ 3.97
10$ 3.24
25$ 2.98
50$ 2.81
100$ 2.64
250$ 2.43
500$ 2.29
1000$ 2.15

Description

General part information

P13 Series

The P13-0123 is a Pointed-series 16.35mm 3A two-part Spring Loaded Contact Probe with phosphor bronze, gold finish, music wire spring, 45° spear tip style, 30milliohms contact resistance and 1.27mm centreline spacing. This probe mates with crimp, solder or wire-wrap receptacles. Ideal for ATE.
