BU-5220-A-4-0

Active

Mueller Electric Co

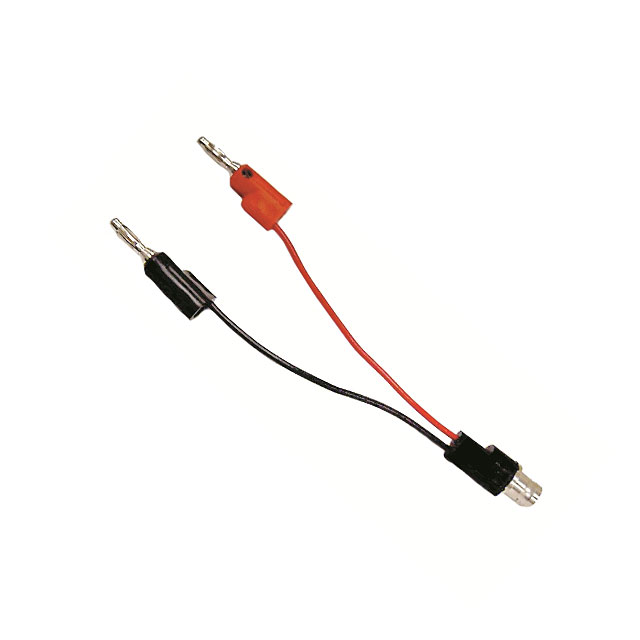

BNC JACK-4MM BANANA PLUG X2, BLK/RED, 4" ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

Mueller Electric Co

BNC JACK-4MM BANANA PLUG X2, BLK/RED, 4" ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	BU-5220-A-4-0

1st Connector	BNC, Female Socket (Jack)
2nd Connector	Banana Plug, Single, Stackable (2)
Cable Length [x]	4 in
Cable Length [x]	101.6 mm
Configuration	BNC to Banana
Current Rating (Amps)	10 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C
Temperature Range	221 °F
Voltage - Rated	300 VAC
Wire Gauge	20 AWG

Part	Voltage - Rated	Wire Gauge	Configuration	2nd Connector	Current Rating (Amps)	1st Connector	Material - Insulation	Cable Length [x]	Cable Length [x]	Temperature Range	Temperature Range
Mueller Electric Co BU-5220-A-4-0	300 VAC	20 AWG	BNC to Banana	Banana Plug Single Stackable (2)	10 A	BNC Female Socket (Jack)	Poly-Vinyl Chloride (PVC)	4 in	101.6 mm	105 °C	221 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.0" (101.60mm) BNC, Female Socket (Jack) To Banana Plug, Single, Stackable (2) Test Lead 300VAC
