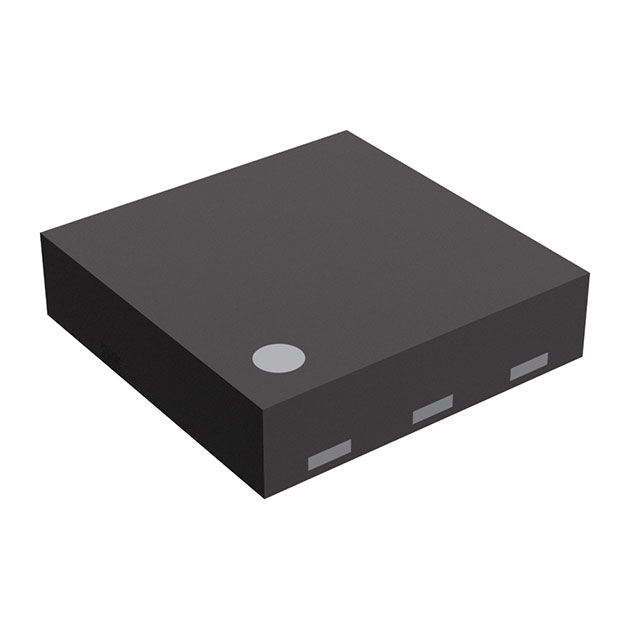

RP503L081A-TR

Active

Nisshinbo Micro Devices Inc

IC REG BUCK 0.8V 600MA 6DFN

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG BUCK 0.8V 600MA 6DFN

Technical Specifications

Parameters and characteristics for this part

IC REG BUCK 0.8V 600MA 6DFN

Part	Output Type	Frequency - Switching	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Supplier Device Package	Synchronous Rectifier	Function	Mounting Type	Output Configuration	Package / Case	Current - Output	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs
Nisshinbo Micro Devices Inc RP503L081A-TR	1.81 mOhm	2 MHz	5.5 V	0.8 V	2.5 V	DFN1616-6		Step-Down	Surface Mount	Positive	6-XFDFN Exposed Pad	600 mA	Buck	85 °C	-40 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 0.8V 1 Output 600mA 6-XFDFN Exposed Pad
