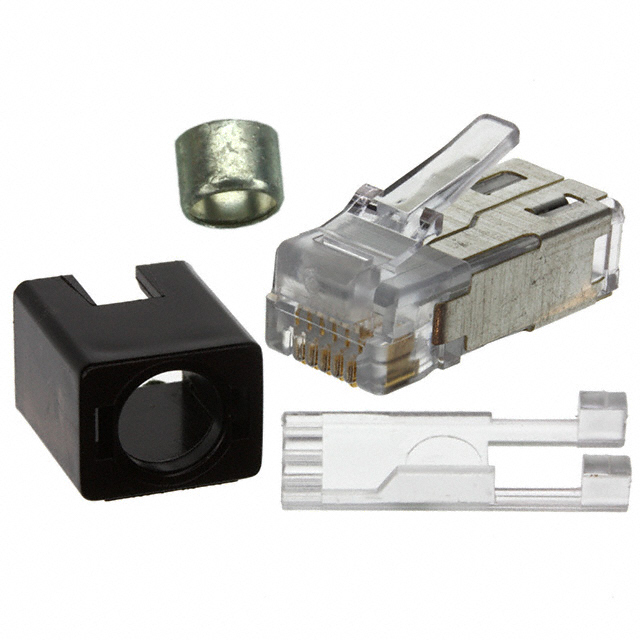

937-SP-360606-A151
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTORS / ETHERNET CONNECTORS MODULAR PLUG STANDARD 6P 6C SHIELDED .032-.038 CONDUCTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
937-SP-360606-A151
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTORS / ETHERNET CONNECTORS MODULAR PLUG STANDARD 6P 6C SHIELDED .032-.038 CONDUCTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 937-SP-360606-A151 |
|---|---|
| Cable Type | Flat Oval Cable, Stranded Wires |
| Color | Translucent - Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Features | Molded Boot |
| Housing Material | Polycarbonate (PC) |
| Length | 26.57 mm |
| Length | 1.046 in |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Shield Material | Brass |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 150 VDC |
937-SP-36 Series
| Part | Color | Length | Length | Connector Type | Housing Material | Features | Shielding | Voltage Rating | Contact Finish | Termination | Cable Type | Contact Material | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Contacts | Shield Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BEL MAGNETIC SOLUTIONS | Translucent - Clear | 26.57 mm | 1.046 in | Plug | Polycarbonate (PC) | Molded Boot | Shielded | 150 VDC | Gold | IDC | Flat Oval Cable Stranded Wires | Phosphor Bronze | 1.5 A | 50 µin | 1.27 µm | 6p6c (RJ11 RJ12 RJ14 RJ25) | Brass | ||
BEL MAGNETIC SOLUTIONS | Translucent - Clear | 26.57 mm | 1.046 in | Plug | Polycarbonate (PC) | Keyed Molded Boot | Shielded | 150 VDC | Gold | IDC | Flat Oval Cable Stranded Wires | Phosphor Bronze | 1.5 A | 50 µin | 1.27 µm | Brass | 10 | 10 | |
BEL MAGNETIC SOLUTIONS | Black Boot Translucent - Clear | 26.57 mm | 1.046 in | Plug | Polycarbonate (PC) | Molded Boot | Shielded | 150 VDC | Gold | IDC | Flat Oval Cable Stranded Wires | Phosphor Bronze | 1.5 A | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Brass | ||
BEL MAGNETIC SOLUTIONS | Translucent - Clear | 26.57 mm | 1.046 in | Plug | Polycarbonate (PC) | Molded Boot | Shielded | 150 VDC | Gold | IDC | Flat Oval Cable Stranded Wires | Phosphor Bronze | 1.5 A | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Brass | ||
BEL MAGNETIC SOLUTIONS | Translucent - Clear | 26.57 mm | 1.046 in | Plug | Polycarbonate (PC) | Shielded | 150 VDC | Gold | IDC | Flat Oval Cable Stranded Wires | Phosphor Bronze | 1.5 A | 50 µin | 1.27 µm | Brass | 10 | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
937-SP-36 Series
Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Shielded IDC
