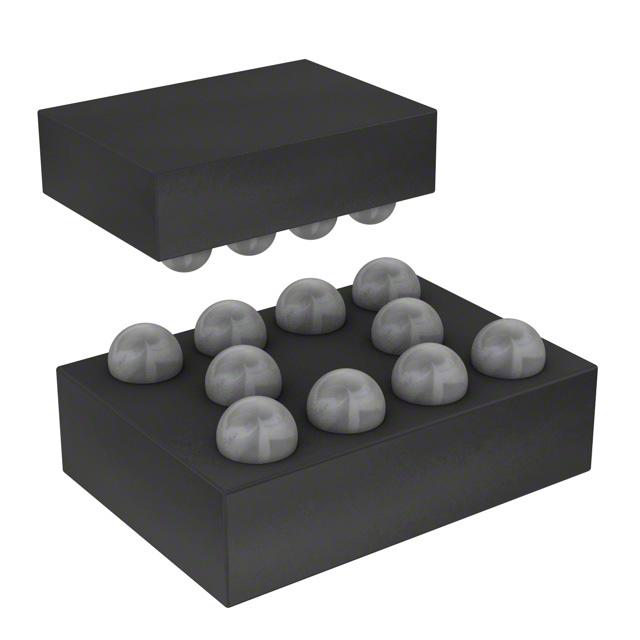

EMIF06-10006F2

Obsolete

STMicroelectronics

6 60PF 2 WFBGA-15 EMI/RFI FILTERS (LC, RC NETWORKS) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EMIF06-10006F2

Obsolete

STMicroelectronics

6 60PF 2 WFBGA-15 EMI/RFI FILTERS (LC, RC NETWORKS) ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EMIF06-10006F2

Applications	Data Lines for Mobile Devices
Current	10 mA
ESD Protection	True
Filter Order	2nd
Height [z]	0.7 mm
Height [z]	0.028 in
Mounting Type	Surface Mount
Number of Channels [custom]	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	15-WFBGA, FCBGA
Resistance - Channel (Ohms)	100 Ohms
Size / Dimension [x]	2.92 mm
Size / Dimension [x]	0.115 in
Size / Dimension [y]	1.29 mm
Size / Dimension [y]	0.051 "
Technology	RC (Pi)
Type	Low Pass
Values	60 pF, 100 Ohms

EMIF06-1005MX12Y Series

6-line EMI filter and ESD protection for mini and micro SD card interfaces

Part	Values	Technology	Resistance - Channel (Ohms)	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Attenuation Value	Package / Case	Filter Order	Height [z]	Height [z]	Mounting Type	Size / Dimension [y]	Current	Size / Dimension [x]	Center / Cutoff Frequency
STMicroelectronics EMIF06-1005M12	45 pF 100 Ohms	RC (Pi)	100 Ohms	Low Pass	0.059 "	1.5 mm	2.5 mm	0.098 "	6	85 °C	-40 °C	Data Lines for Mobile Devices	-34 dB	12-UFDFN Exposed Pad	2nd	0.024 in	0.6 mm	Surface Mount
STMicroelectronics EMIF06-10006F2	60 pF 100 Ohms	RC (Pi)	100 Ohms	Low Pass	0.051 "		2.92 mm	0.115 in	6	85 °C	-40 °C	Data Lines for Mobile Devices		15-WFBGA FCBGA	2nd	0.028 in	0.7 mm	Surface Mount	1.29 mm	10 mA
STMicroelectronics EMIF06-USD14F3	7.5 pF 40 Ohms	RC (Pi)	40 Ohms	Low Pass		0.061 "	0.061 "		6	85 °C	-30 ░C	Data Lines for Mobile Devices		15-UFBGA FCBGA	2nd	0.217 "	5.5 mm	Surface Mount	1.54 mm		1.54 mm
STMicroelectronics EMIF06-USD04F3	10 pF 40 Ohms	RC	40 Ohms	Low Pass	0.061 in	1.55 mm	1.55 mm	0.061 in	6	85 °C	-30 ░C	General Purpose		15-UFBGA FCBGA	2nd	0.022 in	0.56 mm	Surface Mount
STMicroelectronics EMIF06-1005MX12Y	45 pF 100 Ohms	RC (Pi)	100 Ohms	Low Pass	0.053 in	1.35 mm	3 mm	0.118 in	6	150 °C	-55 °C	Data Lines for Mobile Devices	-34 dB	12-WFDFN Exposed Pad	2nd	0.032 in	0.8 mm	Surface Mount Wettable Flank
STMicroelectronics EMIF06-MSD04F3	7.5 pF 40 Ohms	RC (Pi)	40 Ohms	Low Pass		0.061 "	0.061 "		6	85 °C	-40 °C	Data Lines for Mobile Devices		16-WFBGA FCBGA	2nd	0.026 in	0.65 mm	Surface Mount	1.54 mm		1.54 mm	550 MHz
STMicroelectronics EMIF06-VID01C2	16 pF 100 Ohms	RC (Pi)	100 Ohms	Low Pass	0.051 "		2.92 mm	0.115 in	6	85 °C	-40 °C	Data Lines for Mobile Devices	-40 dB	15-WFBGA FCBGA	2nd	0.03 in	0.76 mm	Surface Mount	1.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	N/A	1	$ 0.00

Description

General part information

EMIF06-1005MX12Y Series

The EMIF06-1005M12 is a 6-line, highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference.

This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on the input pins.

Documents

Technical documentation and resources
