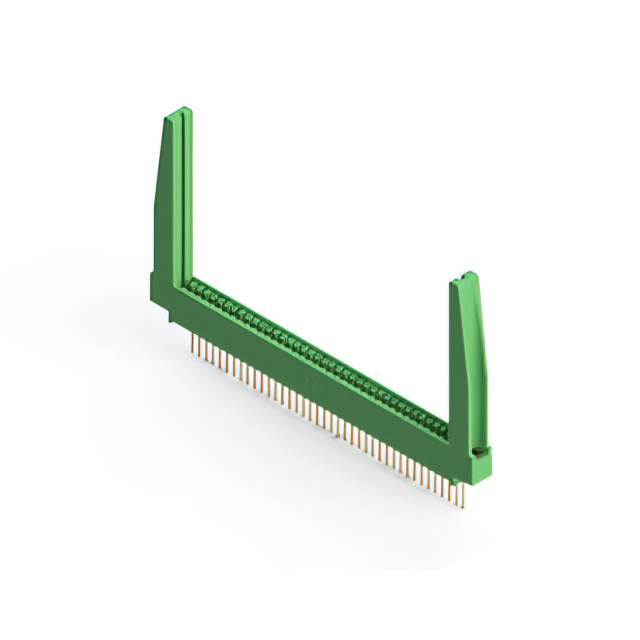

CONN EDGE SGL FMALE 40POS 0.125

Connectors, Interconnects

346-040-541-678

Active

EDAC Inc.

CONN EDGE SGL FMALE 40POS 0.125

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-040-541-678

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	40
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

346-040 Series

...

Part	Contact Finish Thickness	Gender	Card Thickness (Min)	Card Thickness (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish	Features	Termination	Number of Rows	Mounting Type	Contact Material	Flange Feature	Card Type	Pitch	Color	Contact Type	Number of Positions	Read Out	Termination Rows	Material - Insulation	Flange Feature Diameter
EDAC Inc. 346-040-500-858	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold	Card Guides	Solder Eyelet(s)	2	Through Hole	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	0.125 in	Green	Cantilever	20 40	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 346-040-540-101	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold		Wire Wrap	1	Through Hole	Copper Alloy		Non Specified Single Edge	0.125 in	Green	Cantilever	40	Single	1 rows	Polyester Thermoplastic
EDAC Inc. 346-040-560-207	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold	Card Extender	Solder	2	Board Edge Straddle Mount	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Dual Edge Non Specified	0.125 in	Green	Cantilever	20 40	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 346-040-541-678	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold	Card Guides	Wire Wrap	1	Through Hole	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Non Specified Single Edge	0.125 in	Green	Cantilever	40	Single	1 rows	Polyester Thermoplastic
EDAC Inc. 346-040-526-102	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold		Solder	1	Through Hole	Copper Alloy	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	0.125 in	Green	Cantilever	40	Single	1 rows	Polyester Thermoplastic	0.128 in
EDAC Inc. 346-040-540-204	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold		Wire Wrap	2	Through Hole	Copper Alloy	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	0.125 in	Green	Cantilever	20 40	Dual	2 rows	Polyester Thermoplastic	0.156 in
EDAC Inc. 346-040-522-258	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold	Card Guides	Solder	2	Through Hole	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	0.125 in	Green	Cantilever	20 40	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 346-040-559-103	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold		Solder Wire Wrap	1	Right Angle Through Hole	Copper Alloy	Floating Bobbin Flush Mount	Non Specified Single Edge	0.125 in	Green	Cantilever	40	Single	1 rows	Polyester Thermoplastic	0.116 in
EDAC Inc. 346-040-522-858	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold	Card Guides	Solder	2	Through Hole	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	0.125 in	Green	Cantilever	20 40	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 346-040-521-104	10 Ąin	Female	0.054 in	0.07 in	-40 °C	105 °C	Gold		Solder	1	Through Hole	Copper Alloy	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	0.125 in	Green	Cantilever	40	Single	1 rows	Polyester Thermoplastic	0.156 in
