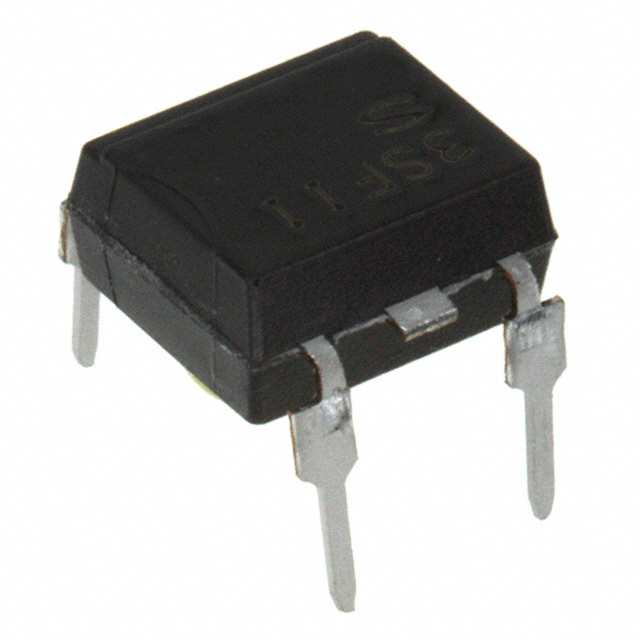

PC3SF11YTZBF

Unknown

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC 6DIP

Search across all available documentation for this part.

Unknown

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	PC3SF11YTZBF

Approval Agency	DEMKO, FIMKO, SEMKO, VDE, BSI, UR, CSA
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	7 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Triac
Package / Case	7.62 mm
Package / Case	6-DIP
Package / Case	0.3 in, 5 Leads
Static dV/dt (Min) [Min]	1 kV/µs
Supplier Device Package	6-DIP
Turn On Time	100 µs
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Approval Agency	Output Type	Supplier Device Package	Current - LED Trigger (Ift) (Max) [Max]	Package / Case	Package / Case	Package / Case	Mounting Type	Turn On Time	Current - Hold (Ih)	Operating Temperature [Max]	Operating Temperature [Min]	Static dV/dt (Min) [Min]	Current - On State (It (RMS)) (Max)	Voltage - Off State	Number of Channels	Current - DC Forward (If) (Max)
SHARP/Socle Technology PC3SF11YVZAF	BSI CSA DEMKO FIMKO SEMKO UR VDE	Triac	6-DIP	10 mA	7.62 mm	6-DIP	0.3 in 5 Leads	Through Hole	100 µs	3.5 mA	100 °C	-30 ░C	1 kV/µs	100 mA	600 V	1	50 mA
SHARP/Socle Technology PC3SF11YTZBF	BSI CSA DEMKO FIMKO SEMKO UR VDE	Triac	6-DIP	7 mA	7.62 mm	6-DIP	0.3 in 5 Leads	Through Hole	100 µs	3.5 mA	100 °C	-30 ░C	1 kV/µs	100 mA	600 V	1	50 mA
SHARP/Socle Technology PC3SF11YVZBH	BSI CSA DEMKO FIMKO SEMKO UR VDE	Triac	6-DIP	7 mA		6-DIP	5 Leads 10.16 mm	Through Hole	100 µs	3.5 mA	100 °C	-30 ░C	1 kV/µs	100 mA	600 V	1	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
