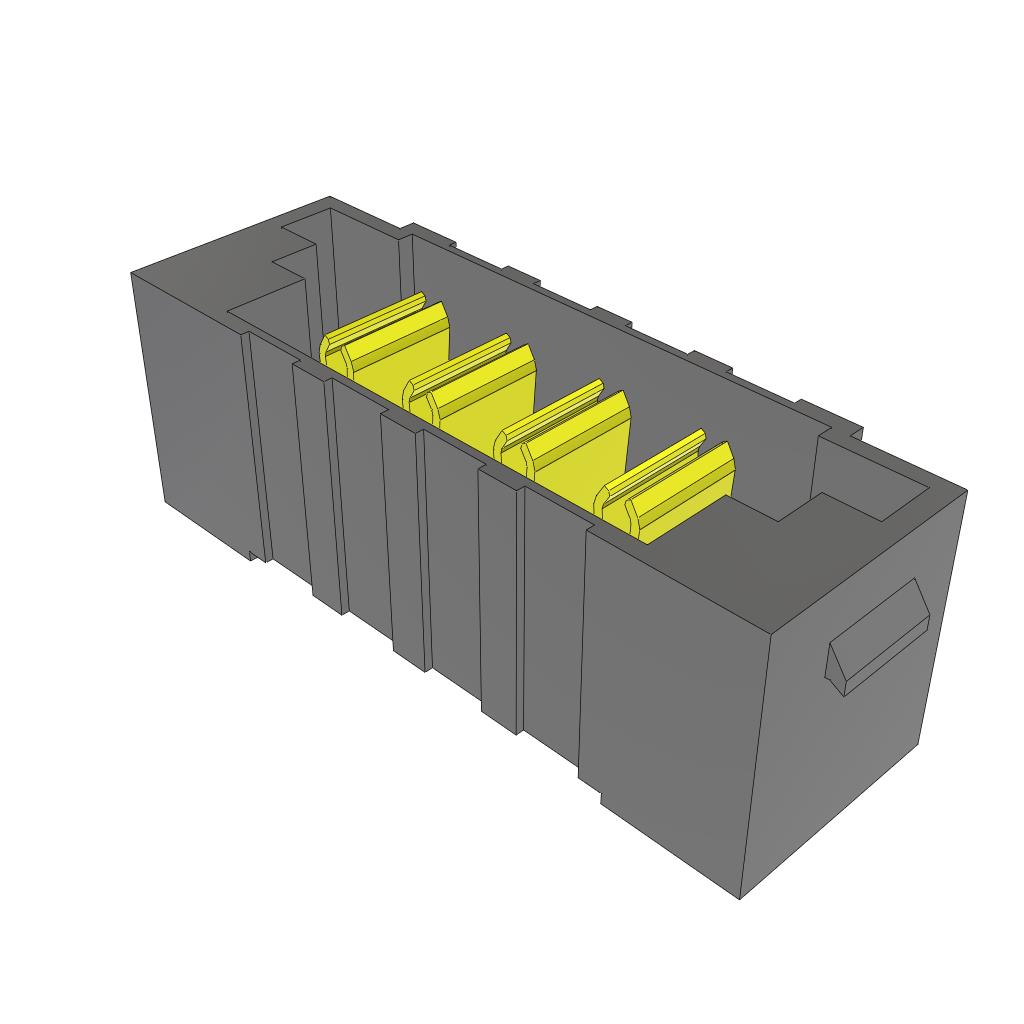

PET-04-01-S-VT

Active

Samtec Inc.

CONN HDR 4POS PCB SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 4POS PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Mounting Type	Voltage Rating	Fastening Type	Color	Current Rating (Amps)	Contact Finish	Material - Insulation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Features	Pitch [x]	Pitch [x]
Samtec Inc. PET-04-02-L-VT	Solder	10 Áin	0.25 Ám	Header Male Blades	4	Through Hole	1025 V	Latch Lock	Black	40 A	Gold	Liquid Crystal Polymer (LCP)	Copper Alloy	-55 °C	125 °C	1
Samtec Inc. PET-04-01-L-RA-SD	Solder	10 Áin	0.25 Ám	Header Male Blades	4	Board Edge Right Angle Through Hole	1025 V	Locking Ramp Screw Lock	Black	40 A	Gold	Liquid Crystal Polymer (LCP)	Copper Alloy	-55 °C	125 °C	1	Flange	0.25 in	6.35 mm
Samtec Inc. PET-04-01-L-VT	Solder	10 Áin	0.25 Ám	Header Male Blades	4	Through Hole	1025 V	Locking Ramp	Black	40 A	Gold	Liquid Crystal Polymer (LCP)	Copper Alloy	-55 °C	125 °C	1
Samtec Inc. PET-04-01-S-VT	Solder	30 Áin	0.76 Ám	Header Male Blades	4	Through Hole	1025 V	Locking Ramp	Black	40 A	Gold	Liquid Crystal Polymer (LCP)	Copper Alloy	-55 °C	125 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 11.98
