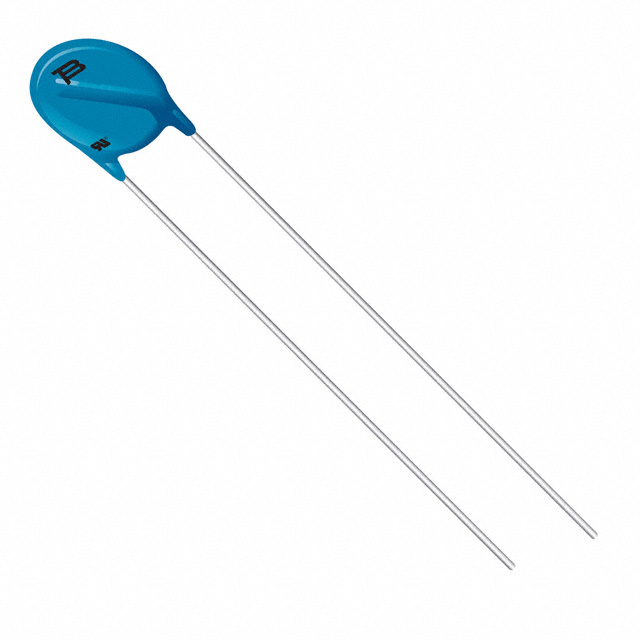

MOV-07D680K

Active

Bourns Inc.

VAR MOV 40VAC/56VDC 250A 68V THRU-HOLE RADIAL BULK

Search across all available documentation for this part.

Active

Bourns Inc.

VAR MOV 40VAC/56VDC 250A 68V THRU-HOLE RADIAL BULK

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Min) [Min]	Current - Surge	Capacitance @ Frequency	Maximum AC Volts [Max]	Number of Circuits	Mounting Type	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Maximum DC Volts [Max]	Energy	Package / Case [diameter]	Package / Case	Maximum AC Volts
Bourns Inc. MOV-07D821KTR	85 °C	-40 °C	738 V	1.2 kA	72 pF	510 V	1	Through Hole	902 V	820 V	675 V	40 J	7 mm	Disc
Bourns Inc. MOV-07D471K	85 °C	-40 °C	423 V	1.2 kA	126 pF		1	Through Hole	517 V	470 V	385 V	30 J	7 mm	Disc	300 V
Bourns Inc. MOV-07D270K	85 °C	-40 °C		250 A	3120 pF	17 V	1	Through Hole	30 V	27 V	18 V	1.4 J	7 mm	Disc
Bourns Inc. MOV-07D270KTR	85 °C	-40 °C		250 A	3120 pF	17 V	1	Through Hole	30 V	27 V	18 V	1.4 J	7 mm	Disc
Bourns Inc. MOV-07D751KTR	85 °C	-40 °C	675 V	1.2 kA	84 pF	460 V	1	Through Hole	825 V	750 V	620 V	38 J	7 mm	Disc
Bourns Inc. MOV-07D680KTR	85 °C	-40 °C	61 V	250 A	1200 pF	40 V	1	Through Hole	75 V		56 V	3.6 J	7 mm	Disc
Bourns Inc. MOV-07D680K	85 °C	-40 °C	61 V	250 A	1200 pF	40 V	1	Through Hole	75 V		56 V	3.6 J	7 mm	Disc
Bourns Inc. MOV-07D561K	85 °C	-40 °C	504 V	1.2 kA	108 pF	350 V	1	Through Hole	616 V	560 V	460 V	30 J	7 mm	Disc
Bourns Inc. MOV-07D301KTR	85 °C	-40 °C	270 V	1.2 kA	198 pF	190 V	1	Through Hole	330 V	300 V	250 V	20 J	7 mm	Disc
Bourns Inc. MOV-07D391KTR	85 °C	-40 °C	351 V	1.2 kA	156 pF	250 V	1	Through Hole	429 V	390 V	320 V	25 J	7 mm	Disc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 V 250 A Varistor 1 Circuit Through Hole Disc 7mm
