1538M08

Active

Hammond Manufacturing

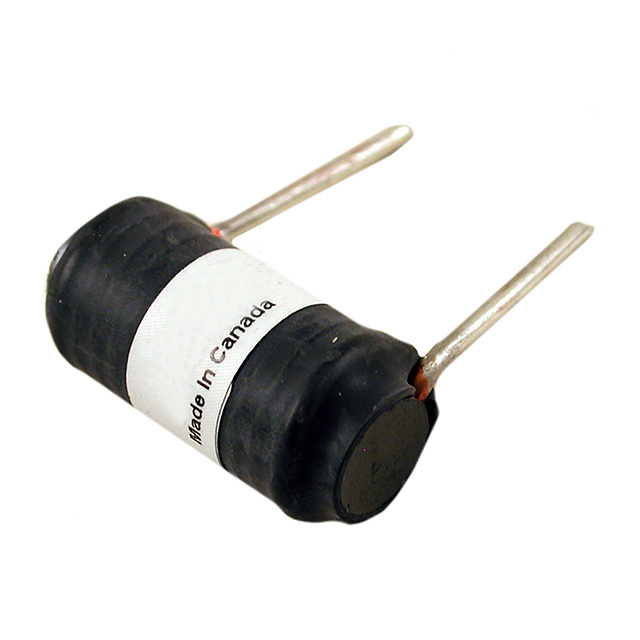

FIXED IND 5UH 14A 9 MOHM TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.70
		10	$ 8.36
		100	$ 7.15
		1000	$ 6.45

Description

General part information

1538 Series

5 µH Unshielded Wirewound Inductor 14 A 9mOhm Max Radial, Horizontal Cylinder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1538M08	1538 Series

Current Rating (Amps)	14 A	4 - 23 A
DC Resistance (DCR)	-	4 - 46 mOhm
DC Resistance (DCR) [Max]	9 mOhm	6 - 89 mOhm
Inductance	5 µH	5 - 250 µH
Mounting Type	Through Hole	Through Hole
Package / Case	Radial, Horizontal Cylinder	Radial, Horizontal Cylinder
Shielding	Unshielded	Unshielded
Size / Dimension	-	18.29 - 42.93 mm
Size / Dimension	-	0.88 - 41.15 mm
Size / Dimension	-	0.88 - 1.62 in
Size / Dimension	-	28.45 - 35.05 mm
Size / Dimension	-	1.12 - 1.38 in
Size / Dimension [diameter]	0.64 "	0.63 - 1 in
Size / Dimension [diameter]	16.26 mm	0.88 - 25.4 mm
Size / Dimension [x]	22.35 mm	22.35 - 41.15 mm
Size / Dimension [x]	0.88 in	0.88 - 1.69 "
Tolerance	10 %	10 %
Type	Wirewound	Wirewound

1538 Series

FIXED IND 68UH 10A 23 MOHM TH

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Inductance	Shielding	Type	Mounting Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Tolerance	Size / Dimension	Size / Dimension [z]	Size / Dimension [z]	DC Resistance (DCR)	Size / Dimension [custom]	Size / Dimension [custom]
Hammond Manufacturing 1538M19	1.38 "	35.05 mm	0.94 in	23.88 mm	68 µH	Unshielded	Wirewound	Through Hole	23 mOhm	10 A	Radial, Horizontal Cylinder	10 %
Hammond Manufacturing 1538M22	1.69 in		0.72 in		10 µH	Unshielded	Wirewound	Through Hole	6 mOhm	20 A	Radial, Horizontal Cylinder	10 %	18.29 mm, 42.93 mm
Hammond Manufacturing 1538M14			0.88 in	22.35 mm	150 µH	Unshielded	Wirewound	Through Hole		6.3 A	Radial, Horizontal Cylinder	10 %		41.15 mm	1.62 in	46 mOhm
Hammond Manufacturing 1538M16	1.38 "	35.05 mm	0.94 in	23.88 mm	10 µH	Unshielded	Wirewound	Through Hole	8 mOhm	16 A	Radial, Horizontal Cylinder	10 %
Hammond Manufacturing 1538M01			0.63 in	16 mm	5 µH	Unshielded	Wirewound	Through Hole		10 A	Radial, Horizontal Cylinder	10 %		22.35 mm	0.88 in	13 mOhm
Hammond Manufacturing 1538M05	1.12 "	28.45 mm	0.81 "	20.57 mm	100 µH	Unshielded	Wirewound	Through Hole	61 mOhm	4.9 A	Radial, Horizontal Cylinder	10 %
Hammond Manufacturing 1538M15	1.12 "	28.45 mm	0.69 in	17.53 mm	5 µH	Unshielded	Wirewound	Through Hole	6 mOhm	19 A	Radial, Horizontal Cylinder	10 %
Hammond Manufacturing 1538M10				0.88 in	27 µH	Unshielded	Wirewound	Through Hole			Radial, Horizontal Cylinder	10 %		0.88 in
Hammond Manufacturing 1538M08	0.88 in	22.35 mm	0.64 "	16.26 mm	5 µH	Unshielded	Wirewound	Through Hole	9 mOhm	14 A	Radial, Horizontal Cylinder	10 %
Hammond Manufacturing 1538M17			0.94 in	23.88 mm	27 µH	Unshielded	Wirewound	Through Hole	14 mOhm	12.5 Amps	Radial, Horizontal Cylinder	10 %					28.45 mm	1.12 in
