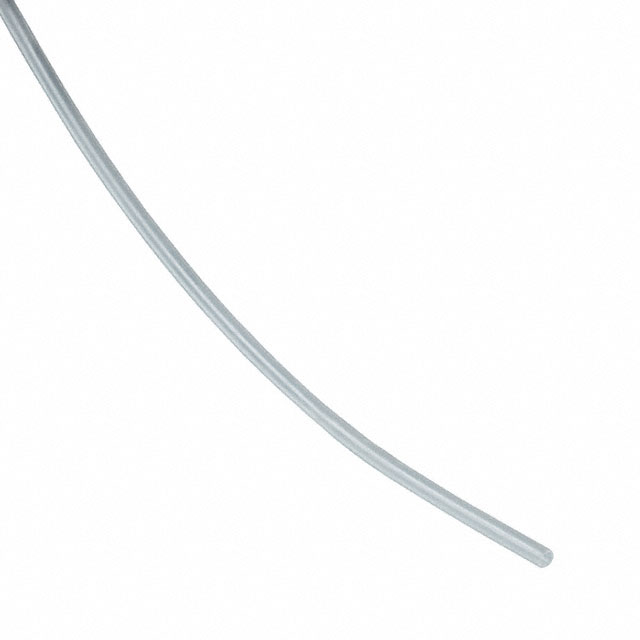

RNF-100-3/64-CL-SP

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.046" X 1000' CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRNF-100 Tubing Spec Sheet Datasheet

RNF-100-3/64-CL-SP

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.046" X 1000' CLEAR

Deep-Dive with AI

DocumentsRNF-100 Tubing Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RNF-100-3/64-CL-SP

Color	Clear
Features	Strain Resistant, Abrasion and Cut Resistant, Solvent Resistant, Fluid Resistant
Inner Diameter - Recovered [diameter]	0.023 in
Inner Diameter - Recovered [diameter]	0.58 mm
Inner Diameter - Supplied [diameter]	1.17 mm
Inner Diameter - Supplied [diameter]	0.046 in
Length	1000 ft
Length	304.8 m, 984.3 ft
Length	300 m
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.016 "
Recovered Wall Thickness	0.41 mm
Shelf Life	144 Months
Shrink Temperature	95 °C
Shrinkage Ratio	2 to 1
Spool Size	1000.7 ft
Spool Size	305 m
Type	Tubing, Flexible

RAYCHEM RNF-100 Series

...

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Shelf Life	Color	Length [x]	Length [x]	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Recovered [diameter]	Spool Size	Spool Size	Length	Length	Length	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection RNF-100-2-CL-STK	50.8 mm	2 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	25.4 mm	1 in	2 to 1	144 Months	Clear	1.22 m	4 ft	Abrasion and Cut Resistant Fluid Resistant Solvent Resistant Strain Resistant	0.045 in	1.14 mm	95 °C
TE Connectivity Raychem Cable Protection RNF-100-3/64-WH-SP	1.17 mm	0.046 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	0.023 in		2 to 1	144 Months	White			Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.016 "	0.41 mm	95 °C	0.58 mm
TE Connectivity Raychem Cable Protection RNF-100-3/64-CL-SP	1.17 mm	0.046 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	0.023 in		2 to 1	144 Months	Clear			Abrasion and Cut Resistant Fluid Resistant Solvent Resistant Strain Resistant	0.016 "	0.41 mm	95 °C	0.58 mm	1000.7 ft	305 m	1000 ft	304.8 m 984.3 ft	300 m
TE Connectivity Raychem Cable Protection RNF-100-1-1/2-BK-STK	38.1 mm	1.5 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated Polyolefin Irradiated	19.05 mm	0.75 "	2 to 1	144 Months	Black	1.22 m	4 ft	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.04 in	1.02 mm	95 °C
TE Connectivity Raychem Cable Protection RNF-100-3/8-WH-SP	9.53 mm	0.375 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	4.75 mm	0.187 in	2 to 1	144 Months	White			Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant			95 °C							0.025 "	0.64 mm
TE Connectivity Raychem Cable Protection RNF-100-1/8-2-SP	3.18 mm	0.125 "	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	1.57 mm	0.062 in	2 to 1	144 Months	Red	1 m	3.28 ft	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.02 in	0.51 mm	95 °C
TE Connectivity Raychem Cable Protection RNF-100-3/4-GN-STK			Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	9.53 mm	0.375 in	2 to 1	144 Months	Green	1.22 m	4 ft	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant		0.76 mm	95 °C									0.03 "
TE Connectivity Raychem Cable Protection RNF-100-1-1/4-YO-SP	31.75 mm	1.25 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	15.88 mm	0.625 in	2 to 1	144 Months	Yellow			Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.04 in	1.02 mm	95 °C
TE Connectivity Raychem Cable Protection RNF-100-1/2-BU-STK	12.7 mm	0.5 in	Tubing Flexible	135 °C	-55 °C	Polyolefin (PO) Irradiated	6.35 mm	0.25 in	2 to 1	144 Months	Blue	1.22 m	4 ft	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant			95 °C							0.025 "	0.64 mm
TE Connectivity Raychem Cable Protection RNF-100-3/4-BK-SP-SM			Tubing Flexible	135 °C	-55 °C	Polyolefin	9.5 mm	0.374 "	2 to 1	144 Months	Black			Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant		0.76 mm	95 °C									0.03 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3	$ 225.23

Description

General part information

RAYCHEM RNF-100 Series

Heat Shrink Tubing, Flexible 0.046" (1.17mm) 2 to 1 Clear 1000.0' (304.8m)

Documents

Technical documentation and resources

RNF-100 Tubing Spec Sheet

Datasheet
