859-008-203R004

Active

MH Connectors

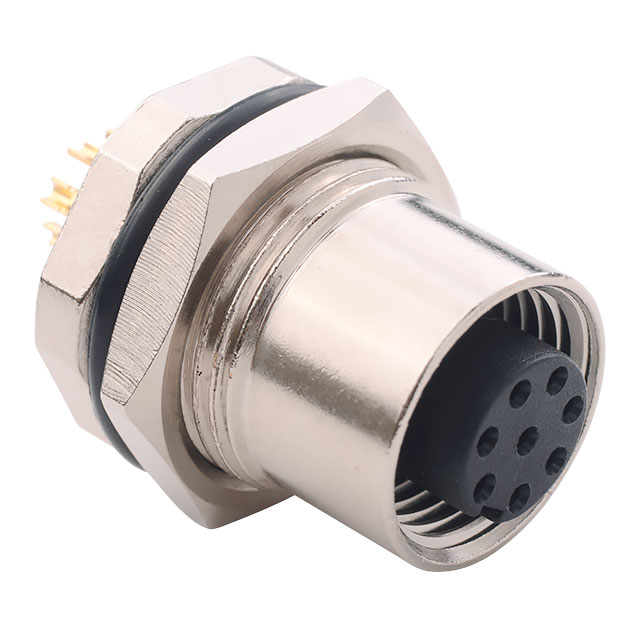

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 8 POSITIONS, SOLDER SOCKET

Search across all available documentation for this part.

Active

MH Connectors

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 8 POSITIONS, SOLDER SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	859-008-203R004

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	2 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Shielding	Shielded
Voltage Rating	30 VDC

Part	Color	Material Flammability Rating	Shielding	Insert Material	Current Rating (Amps)	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Type	Contact Finish - Mating	Shell Material	Ingress Protection	Shell Finish	Shell Size - Insert	Contact Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Primary Material
MH Connectors 859-008-203R004	Silver	UL94 V-0	Shielded	Polybutylene Terephthalate (PBT)	2 A	A	85 °C	-40 °C	8	Female Sockets Plug	Gold	Brass	IP67 - Dust Tight Waterproof	Nickel	M12-8	Brass	30 VDC	10 çin	0.25 çm	Bulkhead - Front Side Nut	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Solder Cup
