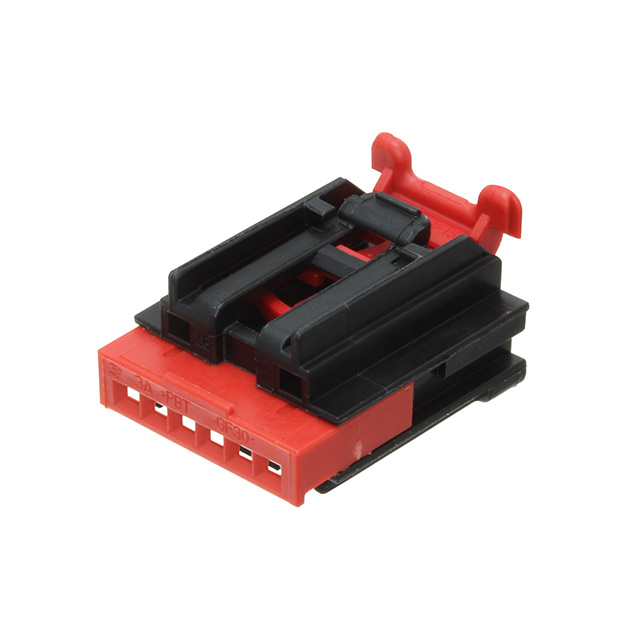

1456985-4

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1456985-4

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Contact Type	Mounting Type	Color	Number of Positions	Number of Rows	Note	Pitch [x]	Pitch [x]	Fastening Type	Contact Termination	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features
TE Connectivity Raychem Cable Protection 1456985-5	Female Socket	Free Hanging (In-Line)	Black	6	1	Contacts Not Included	2.54 mm	0.1 in	Latch Holder	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	125 °C	-40 °C	Receptacle
TE Connectivity Raychem Cable Protection 1456985-2
TE Connectivity Raychem Cable Protection 1456985-4	Female Socket	Free Hanging (In-Line)	Black	6	1	Contacts Not Included	2.54 mm	0.1 in	Latch Holder	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	125 °C	-40 °C	Receptacle	Connector Position Assurance (CPA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
