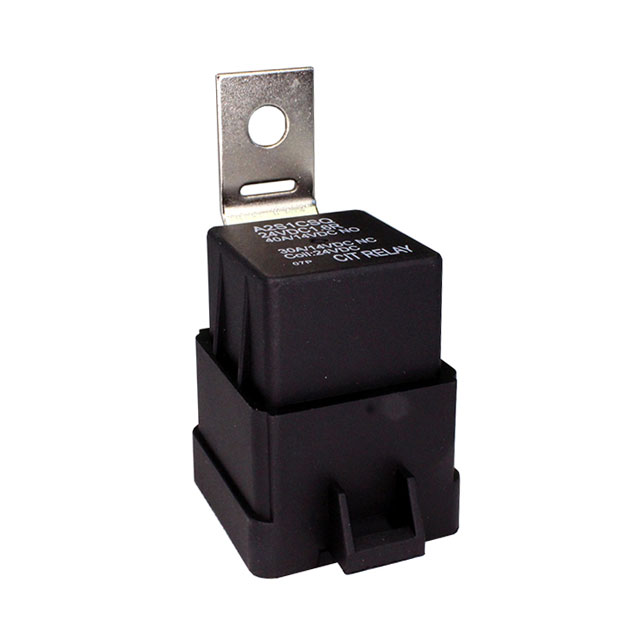

A2S1CSQ24VDC1.6R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 40A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 40A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 40A 12V

Part	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Power	Mounting Type	Features	Contact Form	Coil Resistance	Switching Voltage	Termination Style	Contact Rating (Current)	Coil Voltage	Coil Current	Must Operate Voltage	Contact Material	Must Release Voltage	Release Time	Operate Time
CIT Relay and Switch A2S1CSQ12VDC1.6R	Non Latching	125 °C	-40 °C	1.6 W	Chassis Mount	Resistor, Sealed - Fully	SPDT (1 Form C)	90 Ohms	75 VDC	Quick Connect - 0.250" (6.3mm)	40 A	12 VDC	133.3 mA	8.4 VDC	Silver Tin Oxide (AgSnO)	1.2 VDC	5 ms	7 ms
CIT Relay and Switch A2S1CSQ24VDC1.6	Non Latching	125 °C	-40 °C	1.6 W	Chassis Mount	Sealed - Fully	SPDT (1 Form C)	360 Ohms	75 VDC	Quick Connect - 0.250" (6.3mm)	40 A	24 VDC	66.7 mA	16.8 VDC	Silver Tin Oxide (AgSnO)	2.4 VDC	5 ms	7 ms
CIT Relay and Switch A2S1CSQ24VDC1.6R	Non Latching	125 °C	-40 °C	1.6 W	Chassis Mount	Resistor, Sealed - Fully	SPDT (1 Form C)	360 Ohms	75 VDC	Quick Connect - 0.250" (6.3mm)	40 A	24 VDC	66.7 mA	16.8 VDC	Silver Tin Oxide (AgSnO)	2.4 VDC	5 ms	7 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 40A 24V

Technical documentation and resources
