Specification	PTF-112-01-S-D

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Post	0.09 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Per Contact)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Style	Board
Termination	Press-Fit

PTF Series

Part	Mounting Type	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Post	Number of Positions Loaded	Contact Length - Post	Number of Rows	Style	Insulation Color	Fastening Type	Termination	Pitch - Mating	Contact Type	Row Spacing - Mating	Contact Finish - Mating	Insulation Height	Number of Positions Loaded	Insulation Material	Contact Shape	Contact Material
Samtec Inc. PTF-109-01-L-D-009	Through Hole	10 µin	Socket	18	2.9 A	125 °C	-55 °C	Tin	17	0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in
Samtec Inc. PTF-109-01-S-D	Through Hole	30 µin	Socket	18	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All

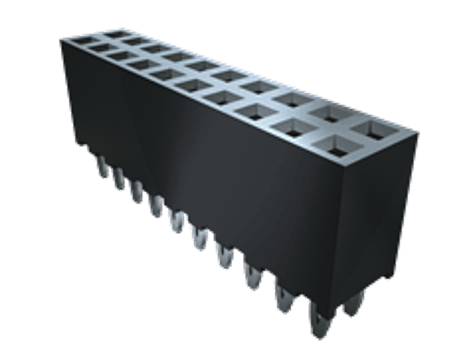

Samtec Inc. PTF-119-03-S-D	Through Hole	30 µin	Socket	38	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.36 in	All
Samtec Inc. PTF-106-01-L-D	Through Hole	10 µin	Socket	12	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze
Samtec Inc. PTF-125-01-L-D	Through Hole	10 µin	Socket	50	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All
Samtec Inc. PTF-104-03-S-D	Through Hole	30 µin	Socket	8	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.36 in	All	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze
Samtec Inc. PTF-105-01-SM-D	Through Hole	30 µin	Socket	10	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze
Samtec Inc. PTF-127-01-S-D	Through Hole	30 µin	Socket	54	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All
Samtec Inc. PTF-111-01-S-D	Through Hole	30 µin	Socket	22	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze
Samtec Inc. PTF-102-01-L-D	Through Hole	10 µin	Socket	4	2.9 A	125 °C	-55 °C	Tin		0.09 in	2	Board	Black	Push-Pull	Press-Fit	0.079 in	Forked	0.079 in	Gold	0.25 in	All
