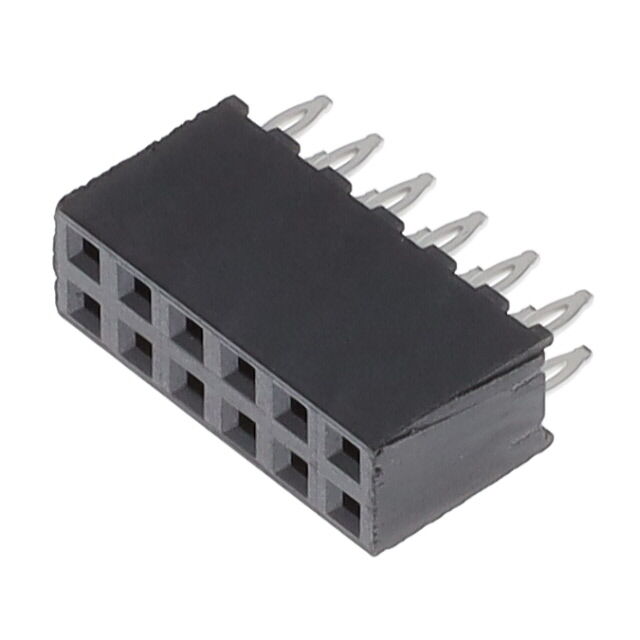

PTF-106-01-L-D
ActiveSamtec Inc.
2.00 MM PRESS-FIT SOCKET STRIP
Deep-Dive with AI
Search across all available documentation for this part.
PTF-106-01-L-D
ActiveSamtec Inc.
2.00 MM PRESS-FIT SOCKET STRIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTF-106-01-L-D |
|---|---|
| Connector Type | Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 2.9 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.11 | |
| 50 | $ 3.35 | |||
| 100 | $ 2.84 | |||
| 500 | $ 2.53 | |||
| 1000 | $ 1.99 | |||
Description
General part information
PTF-106 Series
12 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
