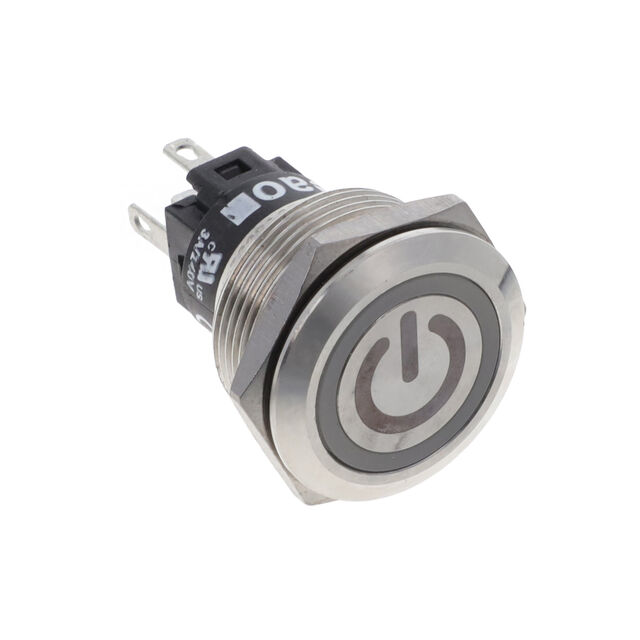

ActiveVANDAL RESISTANT SWITCH, 82 SERIES, 22 MM, SPDT, MAINTAINED, ROUND FLUSH, NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
82-6151.2123.B002
ActiveVANDAL RESISTANT SWITCH, 82 SERIES, 22 MM, SPDT, MAINTAINED, ROUND FLUSH, NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-6151.2123.B002 | 82-6151 Series |
|---|---|---|
| - | - | |
| Actuator Marking | Standby Symbol | No Marking, Standby Symbol |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current | - | 7 mA |
| Current Rating (Amps) | 3 A | 3 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Features | - | Stainless Steel |
| Illumination Type, Color | LED, Blue | LED, Yellow, Blue, Red, Green, Green/Red, White |
| Illumination Voltage (Nominal) | 12 VAC/DC | 12 - 24 VAC/DC |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Lamp Color | - | Green, Red |
| Lens Color | - | Colorless |
| Lens Size | - | 25 mm |
| Mechanical Life | 500000 Cycles | 500000 - 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions | - | 0.88 in |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | - | Round |
| Ratings | - | DC, AC/DC |
| Switch Function | On-On | On-On, On-Mom |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder, Solder Lug |
| Termination Style | 2.8 mm | 2.8 mm |
| Type | Illuminated, Standard | Illuminated, Standard, LED |
| Voltage | - | 24 V |
| Voltage Rating - AC | 240 V | 240 V |
| Voltage Rating - DC | 240 V | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.77 | |
| 10 | $ 18.19 | |||
82-6151 Series
VANDAL RESISTANT SWITCH, 22MM, SPDT, PUSH-PULL, YELLOW, QUICK CONNECT, SOLDER
| Part | Current Rating (Amps) | Circuit | Actuator Marking | Voltage Rating - DC | Voltage Rating - AC | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Illumination Type, Color | Ingress Protection | Illumination Voltage (Nominal) | Color - Actuator/Cap | Actuator Type | Electrical Life | Switch Function | Termination Style | Termination Style | Termination Style | Panel Cutout Dimensions [diameter] | Features | Current | Lens Size [diameter] | Panel Cutout Dimensions | Panel Cutout Dimensions | Voltage | Lens Color | Lamp Color | Panel Cutout Shape | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-6151.2143 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 500000 Cycles | LED, Yellow | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-On | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
3 A | SPDT | Standby Symbol | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 500000 Cycles | Blue, LED | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-On | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | |||||||||||
EAO 82-6151.2000 | 3 A | SPDT | No Marking | 240 V | 240 V | Standard | Panel Mount, Front | 70 °C | -30 ░C | 500000 Cycles | IP65, IP67 | Silver | Button, Flush, Round | 50000 Cycles | On-On | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | Stainless Steel | |||||||||||
EAO 82-6151.1214 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | LED, Red | IP65, IP67 | 24 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | Stainless Steel | |||||||||
EAO 82-6151.01A4 | LED | IP65, IP67 | Solder Lug | 7 mA | 25 mm | 0.88 in | 22.3 mm | 24 V | Colorless | Green, Red | Round | DC | |||||||||||||||||||
EAO 82-6151.1243 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | LED, Yellow | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
EAO 82-6151.1233 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | Green, LED | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
EAO 82-6151.12A4 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | Green/Red, LED | IP65, IP67 | 24 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
EAO 82-6151.1123 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | Blue, LED | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | Stainless Steel | |||||||||
3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | LED, Yellow | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm |
Description
General part information
82-6151 Series
82-6151.2123.B002 is an 82 series optimal pushbutton for vandal-resistant, stylish HMI controls used in harsh industrial environments, public areas and access control. This series is resistant to vandalism and sealed for use in harsh environments. This innovatively designed switch series is protected according to IK10 impact resistance and IP65/IP67 sealing requirements, which makes it ideally suited for exposed public use and industrial applications. It is ideal for ticketing and vending machines, machinery and factory equipment, food and beverage, elevators and people movers, access control and security systems, audio and video equipment, medical equipment, heavy duty and special vehicles buses and coaches and marine applications. It is approved by CE, CB, UL, C UL, CCC.
