82-6151.1214
ActiveEAO

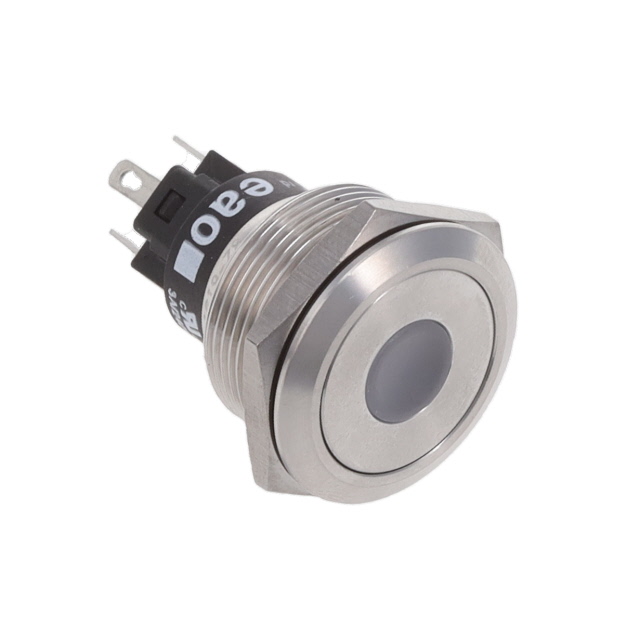

SWITCH PUSHBUTTON SPDT 3A 240V
Deep-Dive with AI
Search across all available documentation for this part.
82-6151.1214
ActiveEAO
SWITCH PUSHBUTTON SPDT 3A 240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-6151.1214 | 82-6151 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking, Standby Symbol |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current | - | 7 mA |
| Current Rating (Amps) | 3 A | 3 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Features | Stainless Steel | Stainless Steel |
| Illumination Type, Color | Red, LED | LED, Yellow, Blue, Red, Green, Green/Red, White |
| Illumination Voltage (Nominal) | 24 VAC/DC | 12 - 24 VAC/DC |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Lamp Color | - | Green, Red |
| Lens Color | - | Colorless |
| Lens Size | - | 25 mm |
| Mechanical Life | 1000000 Cycles | 500000 - 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions | - | 0.88 in |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | - | Round |
| Ratings | - | DC, AC/DC |
| Switch Function | On-Mom | On-On, On-Mom |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder, Solder Lug |
| Termination Style | 2.8 mm | 2.8 mm |
| Type | Illuminated, Standard | Illuminated, Standard, LED |
| Voltage | - | 24 V |
| Voltage Rating - AC | 240 V | 240 V |
| Voltage Rating - DC | 240 V | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.58 | |
| 10 | $ 25.95 | |||
| 100 | $ 22.60 | |||
82-6151 Series
VANDAL RESISTANT SWITCH, 22MM, SPDT, PUSH-PULL, YELLOW, QUICK CONNECT, SOLDER
| Part | Current Rating (Amps) | Circuit | Actuator Marking | Voltage Rating - DC | Voltage Rating - AC | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Illumination Type, Color | Ingress Protection | Illumination Voltage (Nominal) | Color - Actuator/Cap | Actuator Type | Electrical Life | Switch Function | Termination Style | Termination Style | Termination Style | Panel Cutout Dimensions [diameter] | Features | Current | Lens Size [diameter] | Panel Cutout Dimensions | Panel Cutout Dimensions | Voltage | Lens Color | Lamp Color | Panel Cutout Shape | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-6151.2143 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 500000 Cycles | LED, Yellow | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-On | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
3 A | SPDT | Standby Symbol | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 500000 Cycles | Blue, LED | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-On | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | |||||||||||
EAO 82-6151.2000 | 3 A | SPDT | No Marking | 240 V | 240 V | Standard | Panel Mount, Front | 70 °C | -30 ░C | 500000 Cycles | IP65, IP67 | Silver | Button, Flush, Round | 50000 Cycles | On-On | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | Stainless Steel | |||||||||||
EAO 82-6151.1214 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | LED, Red | IP65, IP67 | 24 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | Stainless Steel | |||||||||
EAO 82-6151.01A4 | LED | IP65, IP67 | Solder Lug | 7 mA | 25 mm | 0.88 in | 22.3 mm | 24 V | Colorless | Green, Red | Round | DC | |||||||||||||||||||
EAO 82-6151.1243 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | LED, Yellow | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
EAO 82-6151.1233 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | Green, LED | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
EAO 82-6151.12A4 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | Green/Red, LED | IP65, IP67 | 24 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | ||||||||||
EAO 82-6151.1123 | 3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | Blue, LED | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm | Stainless Steel | |||||||||
3 A | SPDT | No Marking | 240 V | 240 V | Illuminated, Standard | Panel Mount, Front | 70 °C | -30 ░C | 1000000 Cycles | LED, Yellow | IP65, IP67 | 12 VAC/DC | Silver | Button, Flush, Round | 50000 Cycles | On-Mom | 0.11 in | Quick Connect, Solder | 2.8 mm | 22.3 mm |
Description
General part information
82-6151 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
