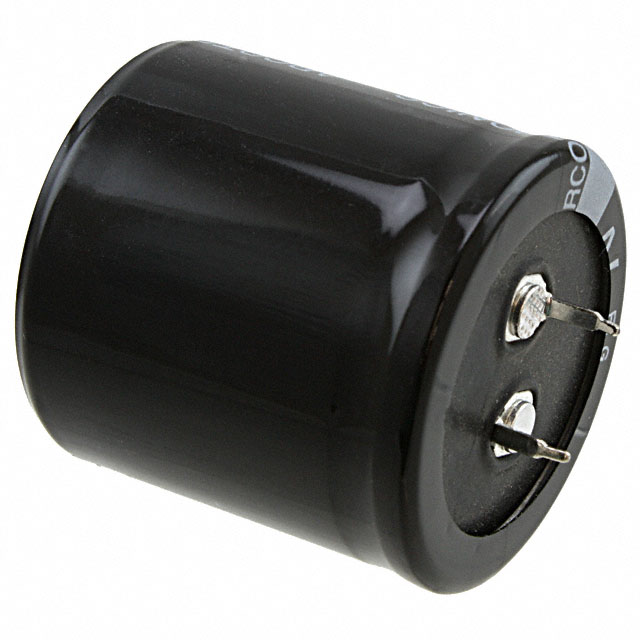

ELG337M400AT3AA

Active

KEMET

ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 330 F, 20%, 400 V, 35 MM, 0.195 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 330 F, 20%, 400 V, 35 MM, 0.195 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ELG337M400AT3AA

Applications	General Purpose
Capacitance	330 µF
ESR (Equivalent Series Resistance)	195 mOhm
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	1.9575 A
Ripple Current @ Low Frequency	1.35 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	400 V

Part	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Voltage - Rated	Package / Case	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Ripple Current @ Low Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
KEMET ELG337M400AT3AA	0.394 in	10 mm	2000 Hrs	400 V	Radial Can - Snap-In	330 µF	37 mm	1.457 in	General Purpose	1.35 A	Polar	1.378 in	35 mm	20 %	1.9575 A	195 mOhm	Through Hole	-25 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

330 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 195mOhm @ 20kHz 2000 Hrs @ 105°C
