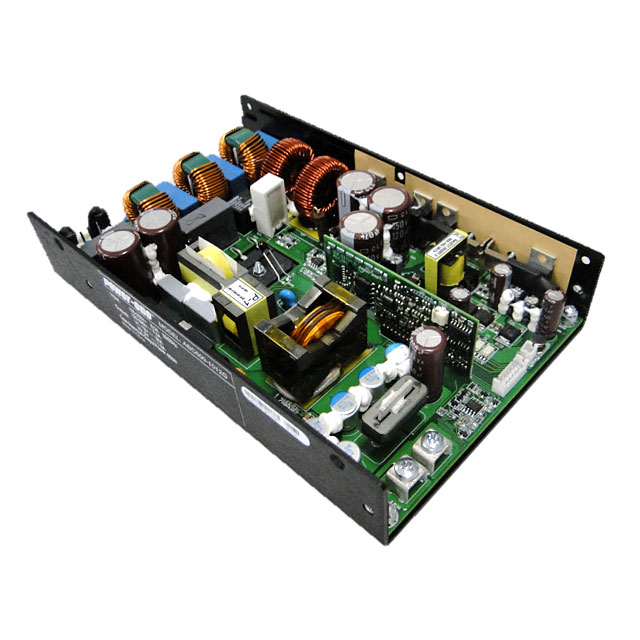

ABC600-1028G

Active

Bel Power Solutions

AC/DC CONVERTER 28V 420W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 28V 420W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC600-1028G	ABC600 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	15 A	12.5 - 50 A
Efficiency	94 %	94 %
Features	PMBus™ Interface, PFC, Standby Output, Universal Input, Remote On/Off, Adjustable Output, Remote Sense, Load Sharing	PMBus™ Interface, PFC, Standby Output, Universal Input, Remote On/Off, Adjustable Output, Remote Sense, Load Sharing
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	420 W	420 W
Power (Watts)	600 W	600 W
Size / Dimension [x]	8 "	8 "
Size / Dimension [y]	5 "	5 "
Size / Dimension [z]	40.6 mm, 1.6 "	1.6 - 40.6 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	277 VAC	277 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	28 V	12 - 48 V

AC/DC CONVERTER 12V 420W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Applications	Current - Output 1	Type	Features	Approval Agency	Number of Outputs	Power (Watts)	Power (Watts)
Bel Power Solutions ABC600-1012G	277 VAC	90 VAC	94 %	4.242 kV	-25 °C	70 °C	12 V	8 "	5 "	1.6 ", 40.6 mm	Chassis Mount	ITE (Commercial)	50 A	Open Frame	Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input	CE	1	420 W	600 W
Bel Power Solutions ABC600-1028G	277 VAC	90 VAC	94 %	4.242 kV	-25 °C	70 °C	28 V	8 "	5 "	1.6 ", 40.6 mm	Chassis Mount	ITE (Commercial)	15 A	Open Frame	Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input	CE	1	420 W	600 W
Bel Power Solutions ABC600-1024G	277 VAC	90 VAC	94 %	4.242 kV	-25 °C	70 °C	24 V	8 "	5 "	1.6 ", 40.6 mm	Chassis Mount	ITE (Commercial)	25 A	Open Frame	Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input	CE	1	420 W	600 W
Bel Power Solutions ABC600-1048G	277 VAC	90 VAC	94 %	4.242 kV	-25 °C	70 °C	48 V	8 "	5 "	1.6 ", 40.6 mm	Chassis Mount	ITE (Commercial)	12.5 A	Open Frame	Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input	CE	1	420 W	600 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 28V 90 ~ 277 VAC Input
