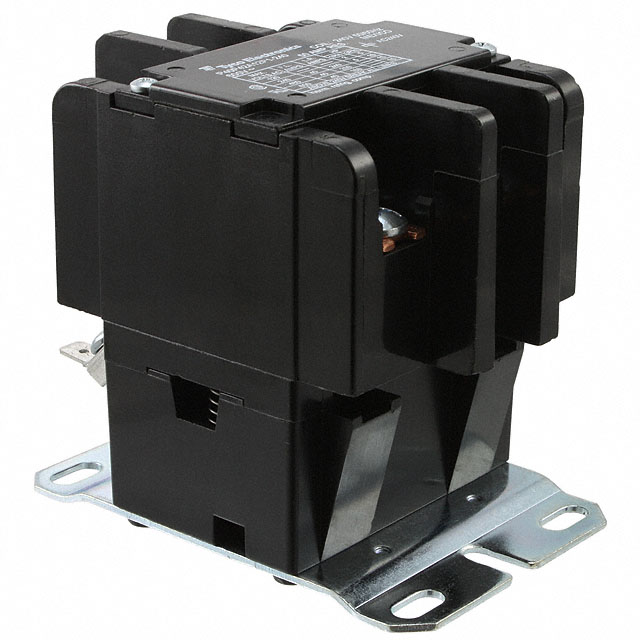

P40P42A12P1-240

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 40A 240V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 40A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	P40P42A12P1-240

Coil Power	12 VA
Coil Voltage	240 VAC
Contact Form	DM
Contact Form	3PST-NO
Contact Form	3 Form X
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	40 A
Mounting Type	Chassis Mount
Must Operate Voltage	177 VAC
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-55 °C
Switching Voltage	600 VAC
Termination Style	Screw Terminal, Quick Connect
Termination Style	0.25 in

Part	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating (Current)	Contact Form	Contact Form	Contact Form	Must Operate Voltage	Contact Material	Coil Power	Coil Voltage	Termination Style	Termination Style
TE Connectivity Potter & Brumfield Relays P40P42A12P1-240	600 VAC	-55 °C	65 °C	Chassis Mount	40 A	DM	3PST-NO	3 Form X	177 VAC	Silver Cadmium Oxide (AgCdO)	12 VA	240 VAC	Quick Connect Screw Terminal	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RELAY CONTACTOR 3PST 40A 240V
