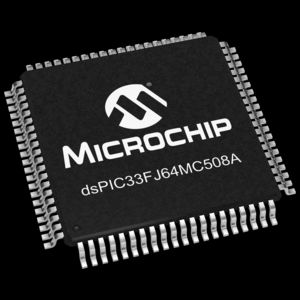

Specification	DSPIC33FJ64MC508A-I/PT

A/D Channels	18 count
A/D Resolution (bits)	12 bit, 10 bit
Connectivity	SPI, CANbus, UART, IrDA, USART, LINbus, I2C
Core Processor	dsPIC
Core Size (Bit Width)	16 Bit
Mounting Type	Surface Mount
Number of I/O	69
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	80-TQFP
Package Length	12 mm
Package Name	80-TQFP
Package Width	12 mm
Peripherals	PWM, DMA, Reset, WDT, QEI, POR, Motor Control PWM, Brown-out Detect
Program Memory Depth	64 K
Program Memory Size	64 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	8 K
RAM Size Width	8 bit
Speed	40 MIPs
Type	Digital Signal Controllers
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	3 V

DSPIC33FJ64MC508 Series

Part	Type	Package / Case	A/D Resolution (bits)	A/D Channels	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	Program Memory Depth	Program Memory Width	Program Memory Size	Peripherals	Mounting Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Connectivity	Program Memory Type	RAM Size Width	RAM Size Depth	Package Width	Package Name	Package Length	Speed	Oscillator Type	Number of I/O	Core Processor	Qualification	Grade
Microchip Technology DSPIC33FJ64MC508AT-I/PT	Digital Signal Controllers	80-TQFP	10 bit 12 bit	18 count	85 °C	-40 °C	16 Bit	64 K	8 bit	64 KB	Brown-out Detect DMA Motor Control PWM POR PWM QEI Reset WDT	Surface Mount	3.6 V	3 V	CANbus I2C IrDA LINbus SPI UART USART	FLASH	8 bit	8 K	12 mm	80-TQFP	12 mm	40 MIPs	Internal	69	dsPIC
Microchip Technology DSPIC33FJ64MC508-I/PT	Digital Signal Controllers	80-TQFP	10 bit 12 bit	18 count	85 °C	-40 °C	16 Bit	64 K	8 bit	64 KB	Brown-out Detect DMA Motor Control PWM POR PWM QEI Reset WDT	Surface Mount	3.6 V	3 V	CANbus I2C IrDA LINbus SPI UART USART	FLASH	8 bit	8 K	12 mm	80-TQFP	12 mm	40 MIPs	Internal	69	dsPIC
Microchip Technology DSPIC33FJ64MC508A-I/PT	Digital Signal Controllers	80-TQFP	10 bit 12 bit	18 count	85 °C	-40 °C	16 Bit	64 K	8 bit	64 KB	Brown-out Detect DMA Motor Control PWM POR PWM QEI Reset WDT	Surface Mount	3.6 V	3 V	CANbus I2C IrDA LINbus SPI UART USART	FLASH	8 bit	8 K	12 mm	80-TQFP	12 mm	40 MIPs	Internal	69	dsPIC
Microchip Technology DSPIC33FJ64MC508T-I/PT	Digital Signal Controllers	80-TQFP	10 bit 12 bit	18 count	85 °C	-40 °C	16 Bit	64 K	8 bit	64 KB	Brown-out Detect DMA Motor Control PWM POR PWM QEI Reset WDT	Surface Mount	3.6 V	3 V	CANbus I2C IrDA LINbus SPI UART USART	FLASH	8 bit	8 K	12 mm	80-TQFP	12 mm	40 MIPs	Internal	69	dsPIC
Microchip Technology dsPIC33FJ64MC508A-E/PT	Digital Signal Controllers	80-TQFP	10 bit 12 bit	18 count	125 °C	-40 °C	16 Bit	64 K	8 bit	64 KB	Brown-out Detect DMA Motor Control PWM POR PWM QEI Reset WDT	Surface Mount	3.6 V	3 V	CANbus I2C IrDA LINbus SPI UART USART	FLASH	8 bit	8 K	12 mm	80-TQFP	12 mm	40 MIPs	Internal	69	dsPIC	AEC-Q100	Automotive
