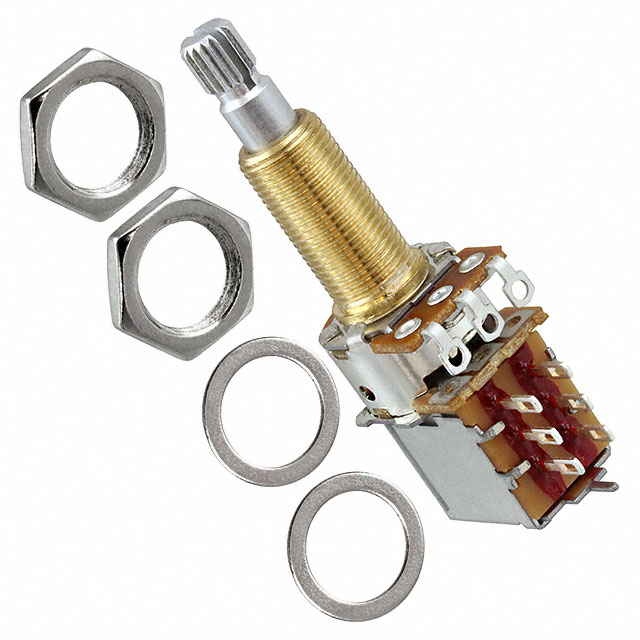

PDB185-GTR31-504C2

Active

Bourns Inc.

POT 500K OHM 1/20W CARBON R-LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDB185-GTR31-504C2

Active

Bourns Inc.

POT 500K OHM 1/20W CARBON R-LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDB185-GTR31-504C2

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [x]	1.083 in
Actuator Length [x]	27.5 mm
Actuator Type	Knurled and Slotted
Adjustment Type	User Defined
Built in Switch	Push-Push, DPDT
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	500 kOhms
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.862 in
Size - Body [x]	21.9 mm
Size - Body [y]	15 mm
Size - Body [y]	0.591 in
Taper	Reverse Logarithmic
Termination Style	Solder Lug
Tolerance	20 %

PDB185 Series

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Tolerance	Rotation	Resistance (Ohms)	Actuator Type	Actuator Length	Actuator Length [z]	Adjustment Type	Built in Switch	Termination Style	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Taper	Bushing Thread	Power (Watts)	Power (Watts)	Number of Turns	Resistive Material	Number of Gangs	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Diameter
Bourns Inc. PDB185-GTR11-504A2	0.236 in	6 mm	20 %	300 ░	500 kOhms	Knurled and Slotted	19 mm	0.748 in	User Defined	Push-Push DPDT	Solder Lug	15 mm	0.591 in	0.862 in	21.9 mm	Logarithmic	3/8-32	0.05 W	50 mW	1	Carbon	1
Bourns Inc. PDB185-GTR01-254A2	0.236 in	6 mm	20 %	300 ░		Knurled and Slotted	19 mm	0.748 in	User Defined	Push-Push DPDT	Solder Lug	15 mm	0.591 in	0.862 in	21.9 mm	Logarithmic	3/8-32	0.05 W	50 mW	1	Carbon	1	250k
Bourns Inc. PDB185-GTR32-504C2	0.25 in		20 %	300 ░	500 kOhms	Slotted			User Defined	Push-Push DPDT	Solder Lug	15 mm	0.591 in	0.862 in	21.9 mm	Reverse Logarithmic	3/8-32	0.05 W	50 mW	1	Carbon	1		1.083 in	27.5 mm	6.35 mm
Bourns Inc. PDB185-GTR31-504C2	0.236 in	6 mm	20 %	300 ░	500 kOhms	Knurled and Slotted			User Defined	Push-Push DPDT	Solder Lug	15 mm	0.591 in	0.862 in	21.9 mm	Reverse Logarithmic	3/8-32	0.05 W	50 mW	1	Carbon	1		1.083 in	27.5 mm
Bourns Inc. PDB185-GTR02-254C2	0.25 in		20 %	300 ░		Slotted	19 mm	0.748 in	User Defined	Push-Push DPDT	Solder Lug	15 mm	0.591 in	0.862 in	21.9 mm	Reverse Logarithmic	3/8-32	0.05 W	50 mW	1	Carbon	1	250k			6.35 mm
Bourns Inc. PDB185-GTR11-254C2	0.236 in	6 mm	20 %	300 ░		Knurled and Slotted	19 mm	0.748 in	User Defined	Push-Push DPDT	Solder Lug	15 mm	0.591 in	0.862 in	21.9 mm	Reverse Logarithmic	3/8-32	0.05 W	50 mW	1	Carbon	1	250k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 11.10

Description

General part information

PDB185 Series

500k Ohm 1 Gang Reverse Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.05W, 1/20W Solder Lug

Documents

Technical documentation and resources
