AYF331335A

Active

Panasonic Electric Works

CONN FPC 13POS 0.3MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FPC 13POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF331335A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	200 mA
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	13
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	50 V

Part	Contact Finish	Termination	Housing Material	Contact Finish Thickness	Mating Cycles	Mounting Type	Current Rating (Amps)	Locking Feature	Material Flammability Rating	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Flat Flex Type	Actuator Material	Contact Material	Cable End Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	FFC, FCB Thickness
Panasonic Electric Works AYF331335A	Gold	Solder	Liquid Crystal Polymer (LCP)	Flash	20	Surface Mount Right Angle	200 mA	Backlock Flip Lock	UL94 V-0	Contacts Top and Bottom	85 °C	-55 °C	13	50 V	FPC	Liquid Crystal Polymer (LCP)	Copper Alloy	Tapered	0.012 in	0.3 mm	0.88 mm	0.035 "	0.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	500	$ 0.87

General part information

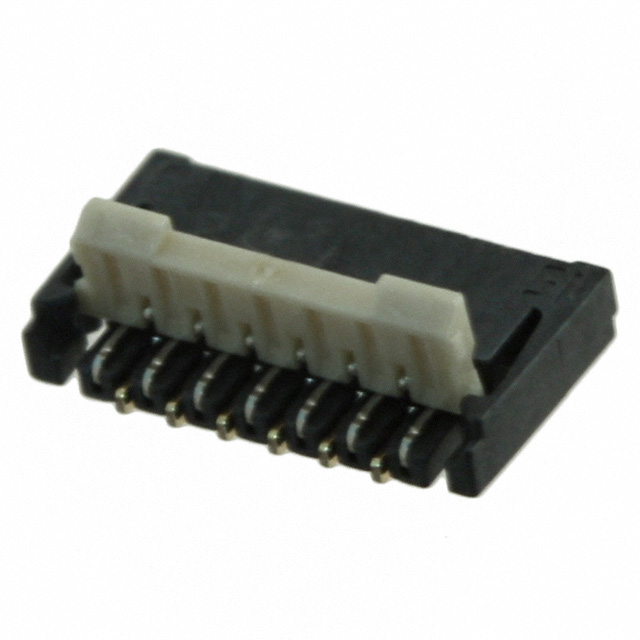

13 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
