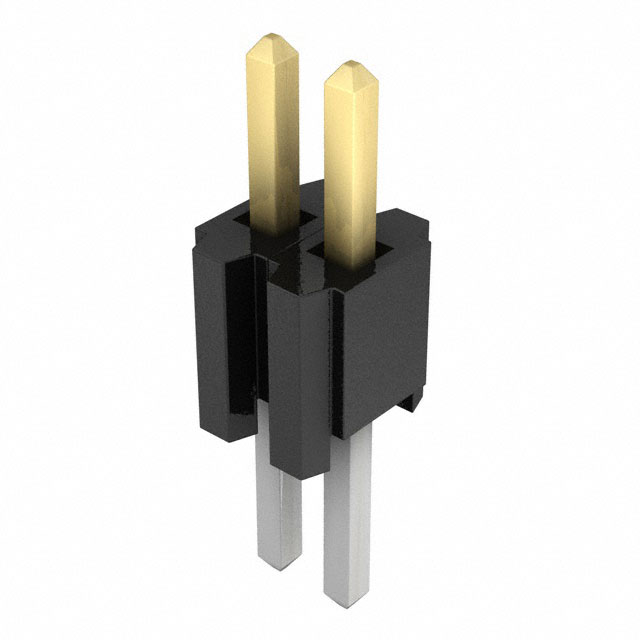

TMS-102-02-L-S

Active

Samtec Inc.

CONNECTOR, HEADER, 2POS, 1ROW, 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TMS Datasheet +1

TMS-102-02-L-S

Active

Samtec Inc.

CONNECTOR, HEADER, 2POS, 1ROW, 1.27MM

Deep-Dive with AI

DocumentsDatasheet TMS Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMS-102-02-L-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.1 in
Contact Length - Mating	2.54 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

TMS-102 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Finish - Post	Number of Positions	Contact Shape	Contact Finish - Mating	Contact Type	Current Rating (Amps)	Contact Material	Number of Rows	Contact Length - Mating	Contact Length - Mating	Shrouding	Number of Positions Loaded	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Number of Positions Loaded [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. TMS-102-02-S-S-RA
Samtec Inc. TMS-102-02-L-S	10 çin	0.25 çm	Push-Pull	0.1 in	2.54 mm	Through Hole	0.12 in	3.05 mm	Header	Tin	2	Square	Gold	Male Pin	5 A	Phosphor Bronze	1	0.1 in	2.54 mm	Unshrouded	All	Black	-55 °C	125 °C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)
Samtec Inc. TMS-102-02-H-S-RA	30 Áin	0.76 Ám	Push-Pull			Through Hole Right Angle	0.14 in	3.56 mm	Header	Gold	2	Square	Gold	Male Pin	5 A	Phosphor Bronze	1	0.1 in	2.54 mm	Unshrouded	All	Black	-55 °C	125 °C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	0.098 in	2.5 mm	3 µin	0.076 µm
Samtec Inc. TMS-102-52-G-S	10 çin	0.25 çm	Push-Pull	0.1 in	2.54 mm	Through Hole	0.12 in	3.05 mm	Header	Gold	2	Square	Gold	Male Pin	5 A	Phosphor Bronze	1	0.205 in	5.21 mm	Unshrouded	All	Black	-55 °C	125 °C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)			3 µin	0.076 µm
Samtec Inc. TMS-102-57-G-S
Samtec Inc. TMS-102-54-L-S	10 çin	0.25 çm	Push-Pull	0.1 in	2.54 mm	Through Hole	0.12 in	3.05 mm	Header	Tin	2	Square	Gold	Male Pin	5 A	Phosphor Bronze	1	0.335 in	8.51 mm	Unshrouded	All	Black	-55 °C	125 °C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)					0.555 in	14.1 mm
Samtec Inc. TMS-102-02-G-S-002	10 çin	0.25 çm	Push-Pull	0.1 in	2.54 mm	Through Hole	0.12 in	3.05 mm	Header	Gold	2	Square	Gold	Male Pin	5 A	Phosphor Bronze	1	0.1 in	2.54 mm	Unshrouded		Black	-55 °C	125 °C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)			3 µin	0.076 µm			1
Samtec Inc. TMS-102-02-G-D-RA	10 çin	0.25 çm	Push-Pull	0.197 in	5 mm	Through Hole Right Angle	0.14 in	3.56 mm	Header	Gold	4	Square	Gold	Male Pin	5 A	Phosphor Bronze	2	0.1 in	2.54 mm	Unshrouded	All	Black	-55 °C	125 °C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)			3 µin	0.076 µm				2.54 mm	0.1 in
Samtec Inc. TMS-102-51-T-S			Push-Pull	0.1 in	2.54 mm	Through Hole	0.12 in	3.05 mm	Header	Tin	2	Square		Male Pin	5 A	Phosphor Bronze	1	0.19 "	4.83 mm	Unshrouded	All	Black	-55 °C	105 ░C	0.05 in	1.27 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)					0.41 in	10.41 mm
Samtec Inc. TMS-102-60-G-D
