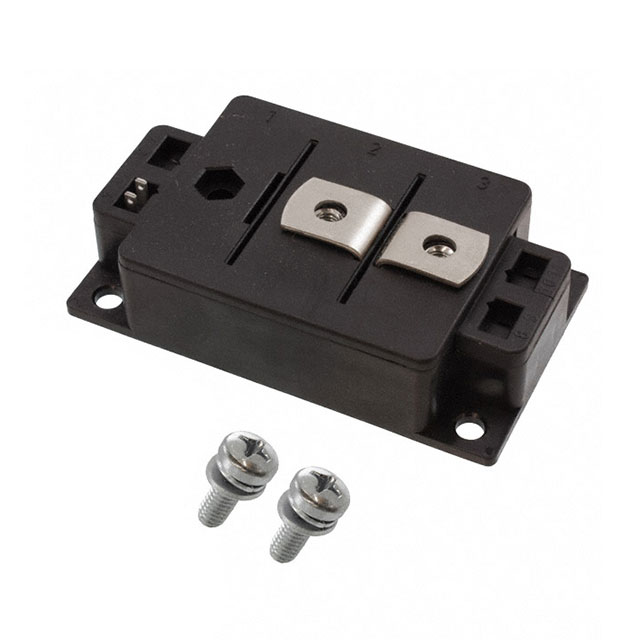

VMM1000-01P

Obsolete

IXYS

MOSFET 2N-CH 100V 1000A Y3-LI

Search across all available documentation for this part.

Obsolete

IXYS

MOSFET 2N-CH 100V 1000A Y3-LI

Technical Specifications

Parameters and characteristics for this part

Specification	VMM1000-01P

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	1000 A
Drain to Source Voltage (Vdss)	100 V
Gate Charge (Qg) (Max) @ Vgs [Max]	2355 nC
Mounting Type	Chassis Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Y3-Li
Rds On (Max) @ Id, Vgs	1.2 mOhm
Supplier Device Package	Y3-Li
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	4 V

Part	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Technology	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Mounting Type
IXYS VMM1000-01P	Y3-Li	Y3-Li	-40 C	175 °C	4 V	MOSFET (Metal Oxide)	2 N-Channel (Dual)	2355 nC	1.2 mOhm	1000 A	100 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 100V 1000A Chassis Mount Y3-Li
