GFTSAX-3
ActiveCurtis Industries

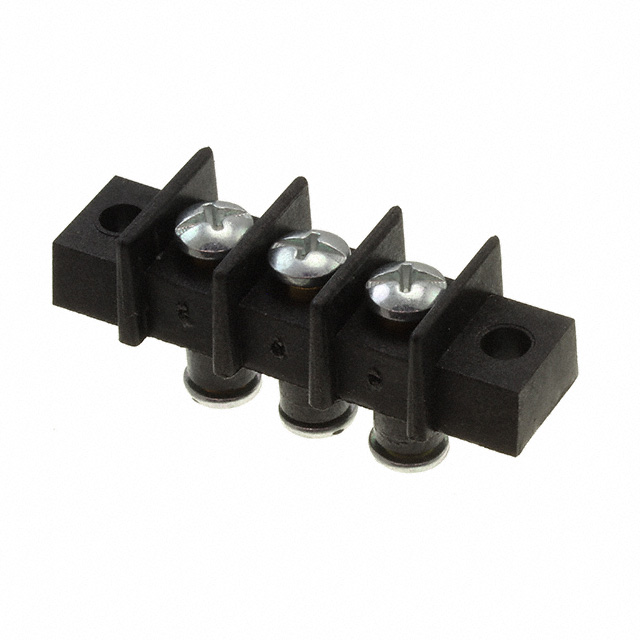

CONN BARRIER STRIP 3CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFTSAX-3
ActiveCurtis Industries
CONN BARRIER STRIP 3CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GFTSAX-3 | GFTSAX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Insulated, Threaded | Insulated, Threaded |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 3 | 1 - 24 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 3 | 3 - 19 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GFTSAX Series
CONN BARRIER STRP 19CIRC 0.438"
| Part | Current Rating (Amps) | Barrier Type | Material - Insulation | Material Flammability Rating | Wire Gauge [Min] | Wire Gauge [Max] | Number of Wire Entries | Mounting Type | Number of Circuits | Terminal Screw Material | Terminal Block Type | Operating Temperature | Number of Rows | Bottom Termination | Pitch [x] | Pitch [x] | Features | Top Termination | Color | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GFTSAX-19 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 19 | Chassis, Panel | 19 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-5 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 5 | Chassis, Panel | 5 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-7 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 7 | Chassis, Panel | 7 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-14 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 14 | Chassis, Panel | 14 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-4 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 4 | Chassis, Panel | 4 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-10 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 10 | Chassis, Panel | 10 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-3 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 3 | Chassis, Panel | 3 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | |
Curtis Industries GFTSAX-24 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | Chassis, Panel | 24 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black | ||
Curtis Industries GFTSAX-1 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | Chassis, Panel | 1 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | Flange | Screws | Black | 1 | |||
Curtis Industries GFTSAX-13 | 20 A | 2 Wall (Dual) | Polyphenylene Oxide (PPO) | UL94 V-0 | 12 AWG | 22 AWG | 13 | Chassis, Panel | 13 | Steel | Barrier Block | 110 °C | 1 | Insulated, Threaded | 11.12 mm | 0.438 in | Flange | Screws | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.02 | |
| 10 | $ 3.83 | |||
| 25 | $ 3.59 | |||
| 50 | $ 3.19 | |||
| 100 | $ 3.12 | |||
| 250 | $ 3.05 | |||
Description
General part information
GFTSAX Series
3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
