GFTSAX-5

Active

Curtis Industries

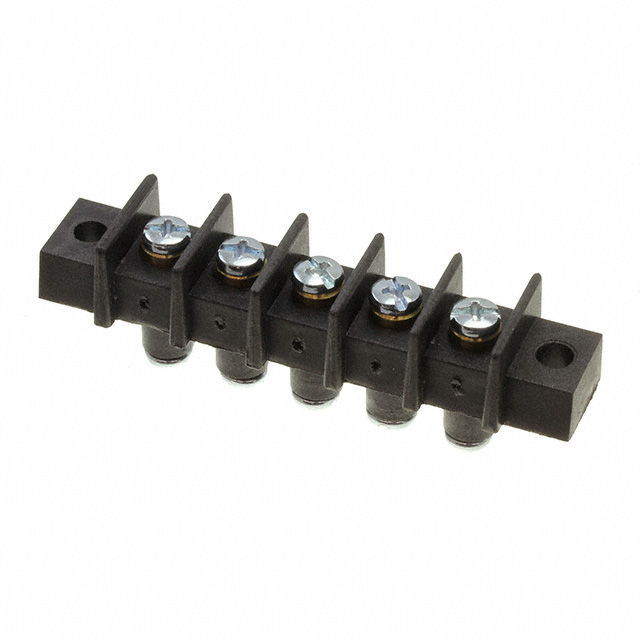

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTSAX-5

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.45
		10	$ 5.53
		25	$ 5.27
		50	$ 4.94

Description

General part information

GFTSAX Series

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	GFTSAX-5	GFTSAX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Insulated, Threaded	Insulated, Threaded
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	5	1 - 24
Number of Rows	1	1
Number of Wire Entries	5	3 - 19
Number of Wire Entries	-	1
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part

Current Rating (Amps)

Barrier Type

Material - Insulation

Material Flammability Rating

Wire Gauge [Min]

Wire Gauge [Max]

Number of Wire Entries

Mounting Type

Number of Circuits

Terminal Screw Material

Terminal Block Type

Operating Temperature

Number of Rows

Bottom Termination

Pitch [x]

Features

Top Termination

Color

Number of Wire Entries [custom]

Curtis Industries

GFTSAX-19

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-5

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-7

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-14

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-4

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-10

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-3

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-24

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Curtis Industries

GFTSAX-1

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

Flange

Screws

Black

Curtis Industries

GFTSAX-13

20 A

2 Wall (Dual)

Polyphenylene Oxide (PPO)

UL94 V-0

12 AWG

22 AWG

Chassis, Panel

Steel

Barrier Block

110 °C

Insulated, Threaded

11.12 mm

0.438 in

Flange

Screws

Black

Part	Current Rating (Amps)	Barrier Type	Material - Insulation	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Mounting Type	Number of Circuits	Terminal Screw Material	Terminal Block Type	Operating Temperature	Number of Rows	Bottom Termination	Pitch [x]	Pitch [x]	Features	Top Termination	Color	Number of Wire Entries [custom]
Curtis Industries GFTSAX-19	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	19	Chassis, Panel	19	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-5	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	5	Chassis, Panel	5	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-7	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	7	Chassis, Panel	7	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-14	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	14	Chassis, Panel	14	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-4	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	4	Chassis, Panel	4	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-10	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	10	Chassis, Panel	10	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-3	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	3	Chassis, Panel	3	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-24	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG		Chassis, Panel	24	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
Curtis Industries GFTSAX-1	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG		Chassis, Panel	1	Steel	Barrier Block	110 °C	1	Insulated, Threaded			Flange	Screws	Black	1
Curtis Industries GFTSAX-13	20 A	2 Wall (Dual)	Polyphenylene Oxide (PPO)	UL94 V-0	12 AWG	22 AWG	13	Chassis, Panel	13	Steel	Barrier Block	110 °C	1	Insulated, Threaded	11.12 mm	0.438 in	Flange	Screws	Black
