826630-3

Active

TE Connectivity AMP Connectors

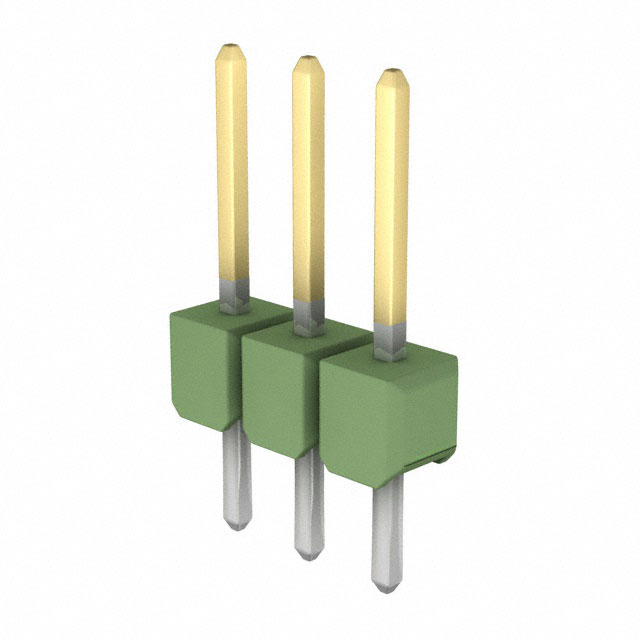

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

826630-3

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826630-3	826630 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	2.5 mm	2.5 mm
Contact Length - Post	0.098 in	0.098 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 50
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12 mm	12 mm
Overall Contact Length	0.472 in	0.472 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826630 Series

CONN HEADER VERT 50POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Material Flammability Rating	Termination	Fastening Type	Contact Material	Style	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Shape	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Rows
TE Connectivity AMP Connectors 5-826630-0	2.5 mm	0.098 in	12 mm	0.472 in	Male Pin	Green	3 µm	118.1 µin	50	UL94 V-0	Solder	Push-Pull	Brass	Board to Board, Cable	All	Gold	Through Hole	5 A	Tin	0.099 µm	3.9 µin	6.7 mm	0.264 in	Breakaway, Header	Square	Unshrouded	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	1
TE Connectivity AMP Connectors 826630-3	2.5 mm	0.098 in	12 mm	0.472 in	Male Pin	Green	3 µm	118.1 µin		UL94 V-0	Solder	Push-Pull	Brass	Board to Board, Cable	All	Gold	Through Hole	5 A	Tin	0.099 µm	3.9 µin	6.7 mm	0.264 in	Breakaway, Header	Square	Unshrouded	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	1
TE Connectivity AMP Connectors 826630-2	2.5 mm	0.098 in	12 mm	0.472 in	Male Pin	Green	3 µm	118.1 µin	2	UL94 V-0	Solder	Push-Pull	Brass	Board to Board, Cable	All	Gold	Through Hole	5 A	Tin	0.099 µm	3.9 µin	6.7 mm	0.264 in	Breakaway, Header	Square	Unshrouded	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.93

Description

General part information

826630 Series

Connector Header Through Hole 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
