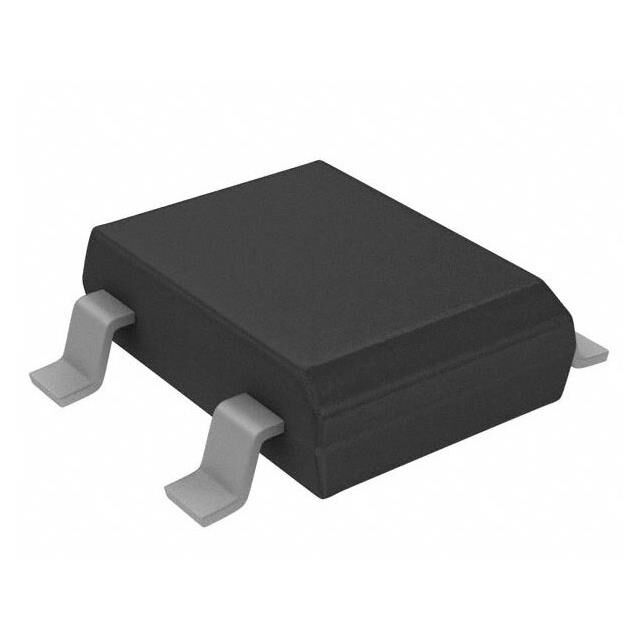

DB102SP-HF

Active

Comchip Technology

BRIDGE RECT 1PHASE 100V 1A DBS

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 100V 1A DBS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DB102SP-HF	DB102 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing, 4-EDIP
Package / Case	-	0.321 in
Package / Case	-	8.15 mm
Supplier Device Package	DBS	DBS, DB
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	100 V	100 V

BRIDGE RECT 1PHASE 100V 1A DBS

Part	Current - Average Rectified (Io)	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Diode Type	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case
Comchip Technology DB102SP-HF	1 A	DBS	10 µA	Standard	1.1 V	Surface Mount	4-SMD, Gull Wing	Single Phase	100 V	-55 °C	150 °C
Comchip Technology DB102S-G	1 A	DBS	10 µA	Standard	1.1 V	Surface Mount	4-SMD, Gull Wing	Single Phase	100 V	-55 °C	150 °C
Comchip Technology DB102-G	1 A	DB	10 µA	Standard	1.1 V	Through Hole	4-EDIP	Single Phase	100 V	-55 °C	150 °C	0.321 in	8.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 100 V Surface Mount DBS
