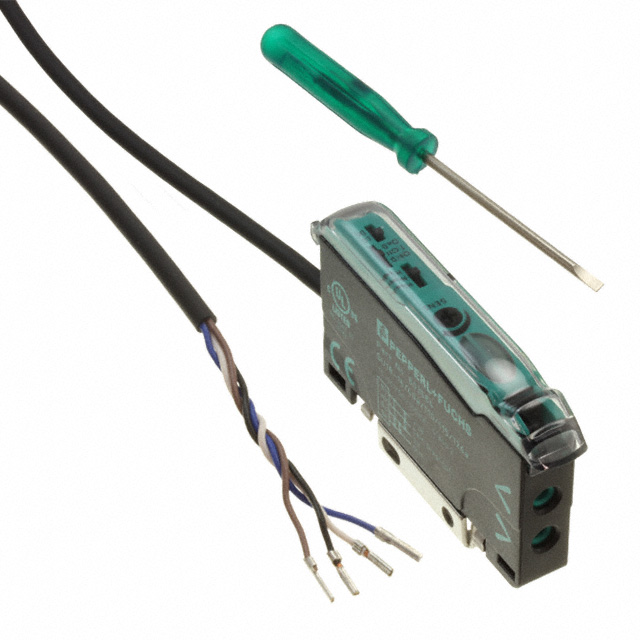

SU18-16/40A/110/115/126A

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Technical Specifications

Parameters and characteristics for this part

Specification	SU18-16/40A/110/115/126A

Adjustment Type	Adjustable
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP50
Light Source	Red LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	160 µs
Sensing Distance	5.906 in
Sensing Distance	15 cm
Sensing Method	Reflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Distance	Sensing Distance	Light Source	Ingress Protection	Connection Method	Adjustment Type	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Cable Length	Cable Length	Sensing Method
PEPPERL+FUCHS SU18-16/40A/110/115/126A	5.906 in	15 cm	Red LED	IP50	Cable	Adjustable	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	160 µs	55 °C	-10 °C	78.74 in	2 m	Reflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 5.906" (150mm) NPN/PNP - Dark-ON/Light-ON
