F4150R12KS4BOSA1

Active

Infineon Technologies

THE F4-150R12KS4 IS A FOURPACK IGBT2 FAST MODULE IN A ECONOPACK™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 150 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE F4-150R12KS4 IS A FOURPACK IGBT2 FAST MODULE IN A ECONOPACK™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 150 A.

Technical Specifications

Parameters and characteristics for this part

Specification	F4150R12KS4BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	180 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	10000 pF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	960 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	3.75 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Input Capacitance (Cies) @ Vce	Package / Case	Mounting Type	Power - Max [Max]	NTC Thermistor	Operating Temperature [Max]	Operating Temperature [Min]	Input	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic
Infineon Technologies F4150R12KS4BOSA1	Module	5 mA	1200 V	Three Phase Inverter	10000 pF	Module	Chassis Mount	960 W		125 °C	-40 °C	Standard	180 A	3.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 124.64
		10	$ 198.26
Newark	Each	1	$ 221.72

General part information

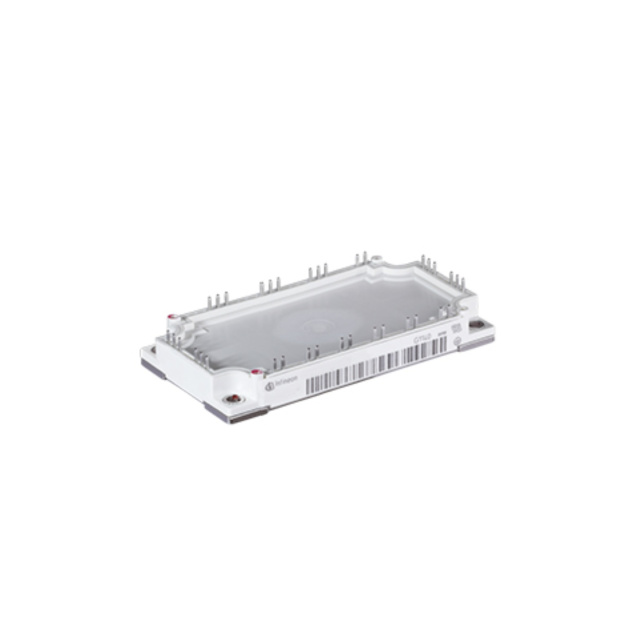

EconoPACK™ 3 1200V fourpackIGBT modulewith the fast IGBT2 for high-frequency switching and NTC
