3122-20-1-0500-002-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 20AWG WHT 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet prior to DC 22/03 Datasheet

3122-20-1-0500-002-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 20AWG WHT 100'

Deep-Dive with AI

DocumentsDatasheet prior to DC 22/03 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3122-20-1-0500-002-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [diameter]	0.0126 in
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.083 "
Jacket (Insulation) Diameter [diameter]	2.11 mm
Jacket (Insulation) Material	Silicone Rubber, Fiberglass
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Length	15.24 m
Length [x]	25 ft, 50 ft, 100 ft
Length [x]	7.62 m, 30.5 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-50 °C
Voltage	300 V
Wire Gauge	20 AWG

3122-20 Series

Part	Conductor Strand [diameter]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Features	Length [x]	Length [x]	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Material	Length
CnC Tech, LLC 3122-20-1-0500-007-1-TS	0.0126 in	7	Green	0.083 "	2.11 mm	300 V	Oil Resistant	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	Hook-Up	20 AWG	0.38 mm	0.015 in	-50 °C	200 °C	Copper Tinned	Fiberglass Silicone Rubber
CnC Tech, LLC 3122-20-1-0500-011-1-TS	0.0126 in	7	Yellow Green Stripe	0.083 "	2.11 mm	300 V	Oil Resistant	50 ft 100 ft 500 '	30.5 m 152.4 m	Hook-Up	20 AWG	0.38 mm	0.015 in	-50 °C	200 °C	Copper Tinned	Fiberglass Silicone Rubber	15.24 m
CnC Tech, LLC 3122-20-1-0500-001-1-TS	0.0126 in	7	Black	0.083 "	2.11 mm	300 V	Oil Resistant	50 ft 500 '	152.4 m	Hook-Up	20 AWG	0.38 mm	0.015 in	-50 °C	200 °C	Copper Tinned	Fiberglass Silicone Rubber	15.24 m
CnC Tech, LLC 3122-20-1-0500-003-1-TS	0.0126 in	7	Yellow	0.083 "	2.11 mm	300 V	Oil Resistant	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	Hook-Up	20 AWG	0.38 mm	0.015 in	-50 °C	200 °C	Copper Tinned	Fiberglass Silicone Rubber	15.24 m
CnC Tech, LLC 3122-20-1-0500-002-1-TS	0.0126 in	7		0.083 "	2.11 mm	300 V	Oil Resistant	25 ft 50 ft 100 ft	7.62 m 30.5 m	Hook-Up	20 AWG	0.38 mm	0.015 in	-50 °C	200 °C	Copper Tinned	Fiberglass Silicone Rubber	15.24 m
CnC Tech, LLC 3122-20-1-0500-004-1-TS	0.0126 in	7	Red	0.083 "	2.11 mm	300 V	Oil Resistant	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	Hook-Up	20 AWG	0.38 mm	0.015 in	-50 °C	200 °C	Copper Tinned	Fiberglass Silicone Rubber	15.24 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 11.38
		1	$ 36.74
		1	$ 20.71
		2	$ 10.83
		2	$ 19.75
		3	$ 34.38
		4	$ 10.33
		5	$ 18.49
		5	$ 32.81
		10	$ 31.24
		10	$ 9.67
		10	$ 17.64
		20	$ 16.80
		20	$ 9.23
		25	$ 29.27
		40	$ 8.78
		50	$ 15.74
		50	$ 27.70
		100	$ 8.23
		100	$ 14.90
		100	$ 26.52
		200	$ 14.26
		200	$ 7.79
		400	$ 7.46
		500	$ 13.73

Description

General part information

3122-20 Series

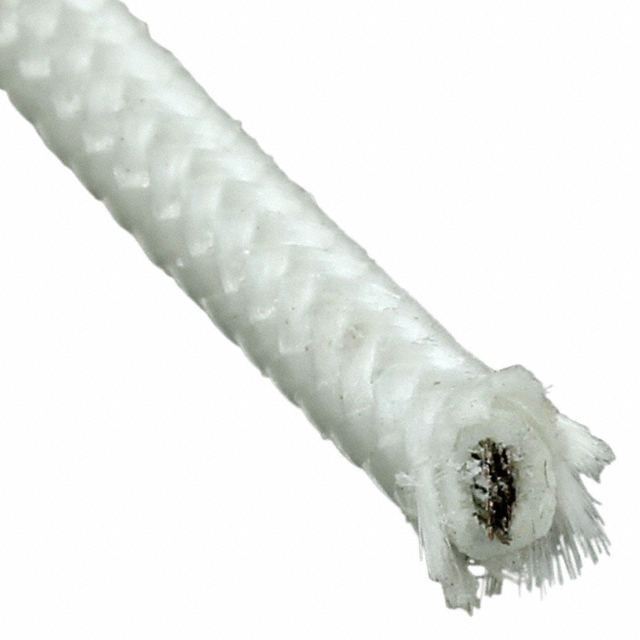

20 AWG Hook-Up Wire 7/0.0126" White 300V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet prior to DC 22/03

Datasheet
