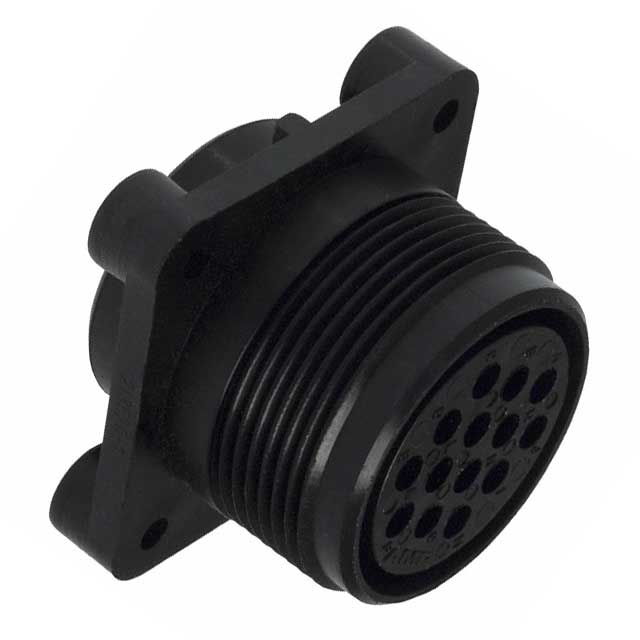

213570-1
ActiveTE Connectivity Raychem Cable Protection
CPC RECPT 20-14 SPECIAL
Deep-Dive with AI
Search across all available documentation for this part.
213570-1
ActiveTE Connectivity Raychem Cable Protection
CPC RECPT 20-14 SPECIAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 213570-1 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Housing Color | Black |
| Insert Material | Thermoplastic |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Qualification | MIL-C-5015 |
| Shell Size - Insert [Max] | 14 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.53 | |
| 10 | $ 21.89 | |||
| 25 | $ 20.35 | |||
| 50 | $ 19.23 | |||
| 100 | $ 18.81 | |||
| 250 | $ 18.67 | |||
| 500 | $ 17.96 | |||
Description
General part information
Mil-C-5015 Circular Plastic Connectors Series
14 Position Circular Power Connector, Housing, 250 VDC, 14 – 24 AWG, .2 – 2 mm² Wire, Wire-to-Panel, Wire & Cable, AMP Circular Plastic Connectors
