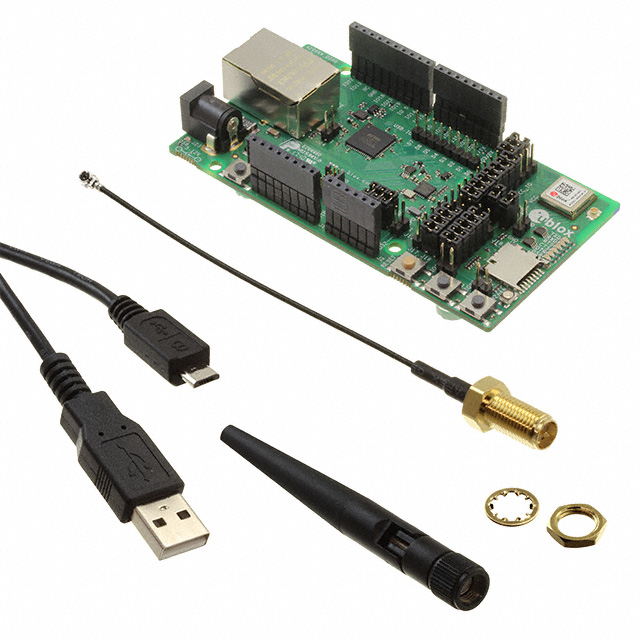

EVK-NINA-W131

Active

u-blox

EVK FOR NINA-W131 WITH U-BLOX SO

Search across all available documentation for this part.

Active

u-blox

EVK FOR NINA-W131 WITH U-BLOX SO

Technical Specifications

Parameters and characteristics for this part

Specification	EVK-NINA-W131

For Use With/Related Products	ESP32, NINA-W131
Frequency	2.4 GHz
Supplied Contents	Cable(s), Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)

Part	Antenna Type	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Data Rate	RF Family/Standard	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Power - Output	Modulation	Package / Case	Frequency [Min]	Frequency [Max]	Supplied Contents	Type	Frequency	For Use With/Related Products
u-blox NINA-W131-04B	Antenna Not Included	2 MB	0.5 MB	SDIO SPI UART	170 mA	120 mA	85 °C	-40 °C	3.6 V	3 V	Surface Mount	54 Mbps	General ISM > 1GHz WiFi	802.11b/g/n	125 mA	110 mA	15 dBm	CCK DSSS OFDM	36-SMD Module	2.4 GHz	2.48 GHz
u-blox EVK-NINA-W131																						Board(s) Cable(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	2.4 GHz	ESP32 NINA-W131

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NINA-W1 ESP32, NINA-W131 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
