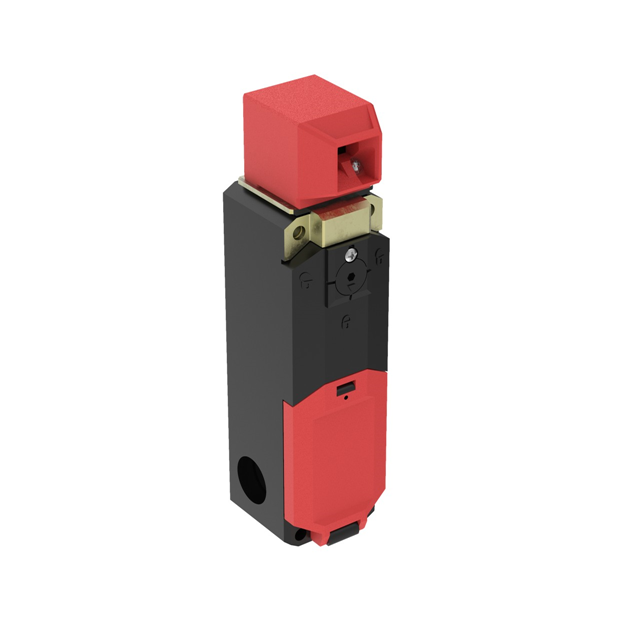

Specification	SI-LS42DSI

Actuator Type	Panel Disconnect
Approval Agency	cULus, CE
Circuit	3PST-2NC/1NO, SPST-NC
Conduit Thread Size	M20
Current Rating	1 A
Features	Manual Override
Holding Force	153 kgf
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Termination Style	Screw Terminal
Type	Solenoid Release
Voltage - Supply	24 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Option 2)	24 DC
Voltage Rating	24 V

SI-LS42 Series

Part	Approval Agency	Termination Style	Current Rating	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Features	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Type	Conduit Thread Size	Holding Force	Ingress Protection Description	Ingress Protection IP Rating	Actuator Type	Voltage Rating	Accessory Type
BANNER ENGINEERING SI-LS42DMH	CE cULus	Screw Terminal	1 A	24 VAC	24 VDC	24 DC	Manual Override	DPST-NC DPST-NO/NC	70 °C	-25 °C	Solenoid Locking	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42-COVER																		Cover
BANNER ENGINEERING SI-LS42DMSG	CE cULus	Screw Terminal	1 A	24 VAC	24 VDC	24 DC	Manual Override	DPST-NO/NC x 2	70 °C	-25 °C	Solenoid Release	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42WMG	CE cULus	Screw Terminal	1 A	110 VAC		230 VAC	Manual Override	DPST-NO/NC x 2	70 °C	-25 °C	Solenoid Locking	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42DMSGF	CE cULus	Screw Terminal	1 A	24 VAC	24 VDC	24 DC	Manual Override	DPST-NO/NC x 2	70 °C	-25 °C	Solenoid Release	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42DMMIF	CE cULus	Screw Terminal	1 A	24 VAC	24 VDC	24 DC	Manual Override	3PST-2NC/1NO SPST-NC	70 °C	-25 °C	Solenoid Locking	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42WMSGF	CE cULus	Screw Terminal	1 A	110 VAC		230 VAC	Manual Override	DPST-NO/NC x 2	70 °C	-25 °C	Solenoid Release	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42DMG	CE cULus	Screw Terminal	1 A	24 VAC	24 VDC	24 DC	Manual Override	DPST-NO/NC x 2	70 °C	-25 °C	Solenoid Locking	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42WMMGF	CE cULus	Screw Terminal	1 A	110 VAC		230 VAC	Manual Override	DPST-NO/NC x 2	70 °C	-25 °C	Solenoid Locking	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V
BANNER ENGINEERING SI-LS42DMSH	CE cULus	Screw Terminal	1 A	24 VAC	24 VDC	24 DC	Manual Override	DPST-NC DPST-NO/NC	70 °C	-25 °C	Solenoid Release	M20	153 kgf	Dust Tight Waterproof	IP67	Panel Disconnect	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SI-LS42DSI | Datasheet
