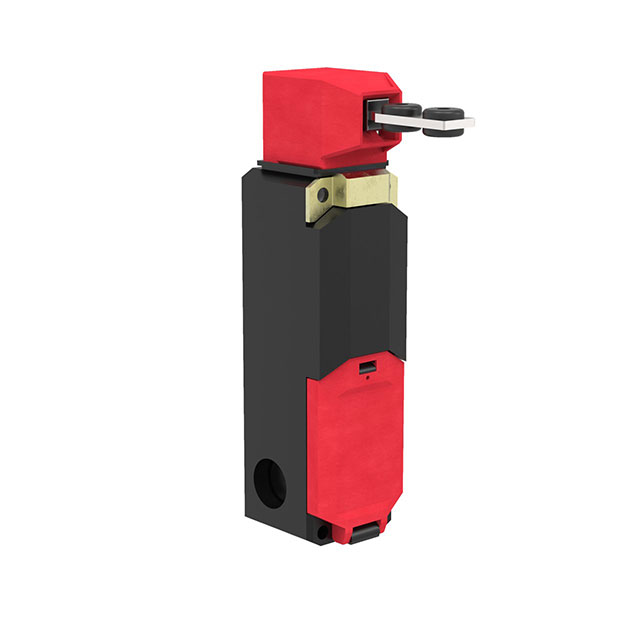

SI-LS42DMSG

Active

BANNER ENGINEERING

SPRING LOCKING: STANDARD IN-LINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI-LS42DMSG

Active

BANNER ENGINEERING

SPRING LOCKING: STANDARD IN-LINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI-LS42DMSG

Actuator Type	Panel Disconnect
Approval Agency	cULus, CE
Circuit	DPST-NO/NC x 2
Current Rating (Amps)	1 A
Features	Manual Override
Holding Force	153 kgf
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Termination Style	Screw Terminal
Type	Solenoid Release
Voltage - Supply	24 VAC
Voltage Rating	24 VAC

SI-LS42 Series

Part	Accessory Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Type	Holding Force	Circuit	Ingress Protection	Actuator Type	Voltage - Supply	Approval Agency	Voltage Rating	Voltage - Supply [Max]	Voltage - Supply [Min]
BANNER ENGINEERING SI-LS42-COVER	Cover
BANNER ENGINEERING SI-LS42DMSG		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Release	153 kgf	DPST-NO/NC x 2	IP67 - Dust Tight Waterproof	Panel Disconnect	24 VAC	CE cULus	24 VAC
BANNER ENGINEERING SI-LS42WMG		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Locking	153 kgf	DPST-NO/NC x 2	IP67 - Dust Tight Waterproof	Panel Disconnect		CE cULus	24 VAC	230 VAC	110 VAC
BANNER ENGINEERING SI-LS42DMMIF		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Locking	153 kgf	3PST-2NC/1NO SPST-NC	IP67 - Dust Tight Waterproof	Panel Disconnect	24 VAC	CE cULus	24 VAC
BANNER ENGINEERING SI-LS42WMSGF		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Release	153 kgf	DPST-NO/NC x 2	IP67 - Dust Tight Waterproof	Panel Disconnect		CE cULus	24 VAC	230 VAC	110 VAC
BANNER ENGINEERING SI-LS42DMG		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Locking	153 kgf	DPST-NO/NC x 2	IP67 - Dust Tight Waterproof	Panel Disconnect	24 VAC	CE cULus	24 VAC
BANNER ENGINEERING SI-LS42WMMGF		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Locking	153 kgf	DPST-NO/NC x 2	IP67 - Dust Tight Waterproof	Panel Disconnect		CE cULus	24 VAC	230 VAC	110 VAC
BANNER ENGINEERING SI-LS42WMSH		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Release	153 kgf	DPST-NC DPST-NO/NC	IP67 - Dust Tight Waterproof	Panel Disconnect		CE cULus	24 VAC	230 VAC	110 VAC
BANNER ENGINEERING SI-LS42DSG		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Release	153 kgf	DPST-NO/NC x 2	IP67 - Dust Tight Waterproof	Panel Disconnect	24 VAC	CE cULus	24 VAC
BANNER ENGINEERING SI-LS42DMMH		Manual Override	70 °C	-25 °C	1 A	Screw Terminal	Solenoid Locking	153 kgf	DPST-NC DPST-NO/NC	IP67 - Dust Tight Waterproof	Panel Disconnect	24 VAC	CE cULus	24 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 361.00
Newark	Each	1	$ 368.00

Description

General part information

SI-LS42 Series

SPRING LOCKING: STANDARD IN-LINE
