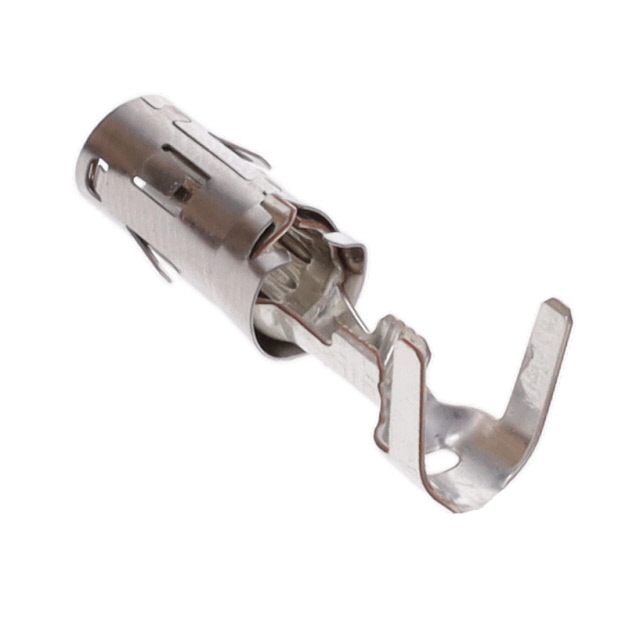

962952-1

Active

TE Connectivity AMP Connectors

CONTACT SOCKET 17-20AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONTACT SOCKET 17-20AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

CONTACT SOCKET 17-20AWG CRIMP

Part	Contact Material	Type	Contact Finish Thickness	Contact Finish Thickness	Termination Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Features	Contact Size	Contact Finish	Contact Type
TE Connectivity AMP Connectors 962952-1	Copper Alloy	Power, Stamped	39.4 Áin	1 Ám	Tin	17 AWG	20 AWG	Crimp	1 mm²	0.5 mm²	Insulation Support	4 mm	Tin	Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact 17-20 AWG Size 4.0mm Crimp Tin
